Fusing
SM 4-103 D086/D087
Replacement
and
Adjustment

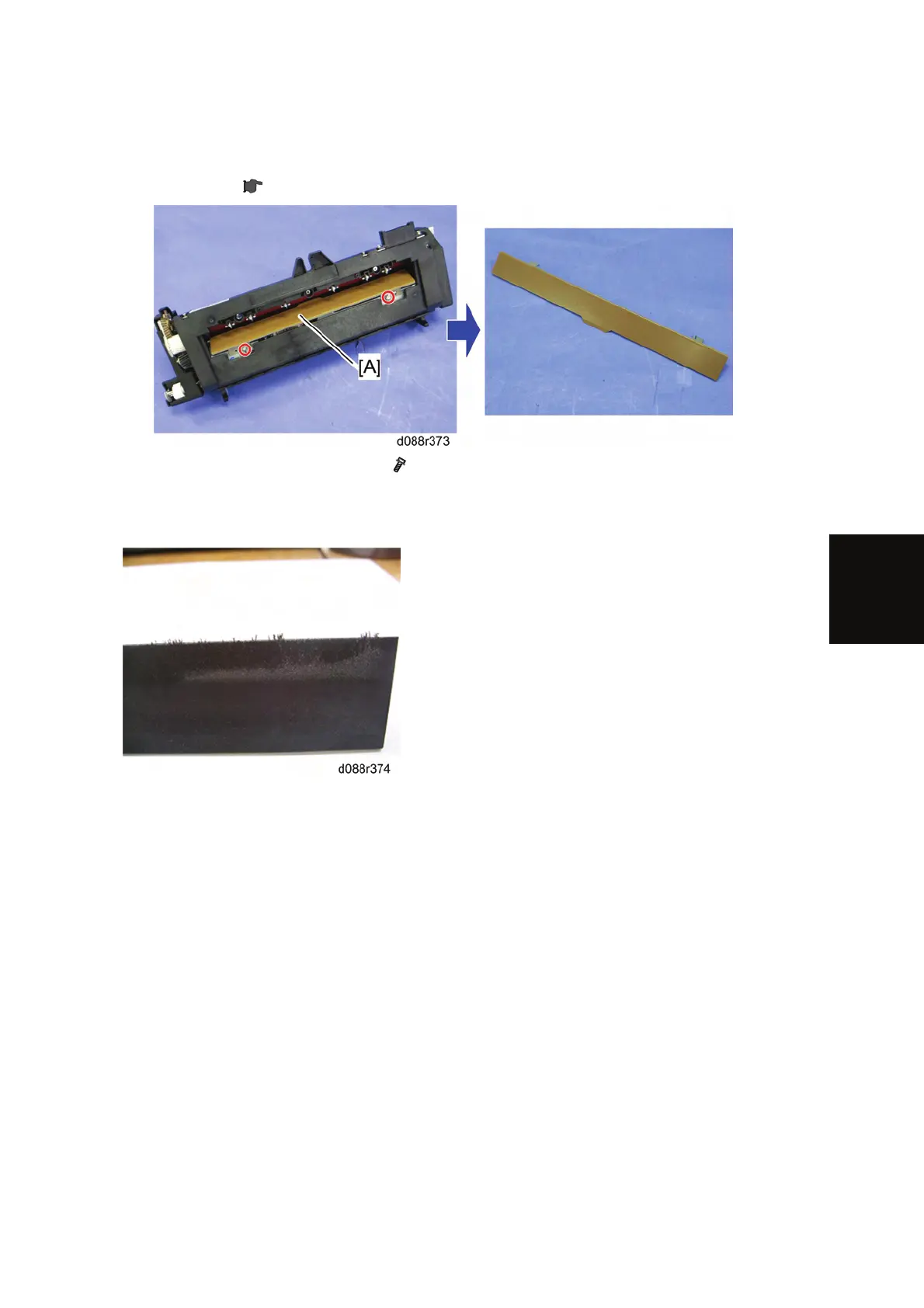

4.11.3 FUSING ENTRANCE GUIDE PLATE
1. Fusing unit ( p.4-99)
2. Fusing entrance guide plate [A] (
x 2)
Cleaning Requirement
The fusing entrance guide plate requires cleaning maintenance every fusing unit
maintenance interval. Clean the fusing entrance guide plate at the place shown above with a
dry cloth, and then clean the fusing entrance guide plate again with a cloth moistened with
alcohol.
