Ricoh Aficio MP C3501 Service Manual

Paper Transfer
SM 4-73 D086/D087
Replacement
and
Adjustment
4.9.2 PAPER TRANSFER UNIT
If you will install a new paper transfer unit, then set SP3-902-016 to 1.
 If you do this, then the machine will reset the PM counter for the paper transfer unit
automatically, after you turn the power on again.
1. Turn off the main power switch.
2. Open the duplex door [A].
3. Open the by-pass tray [B]

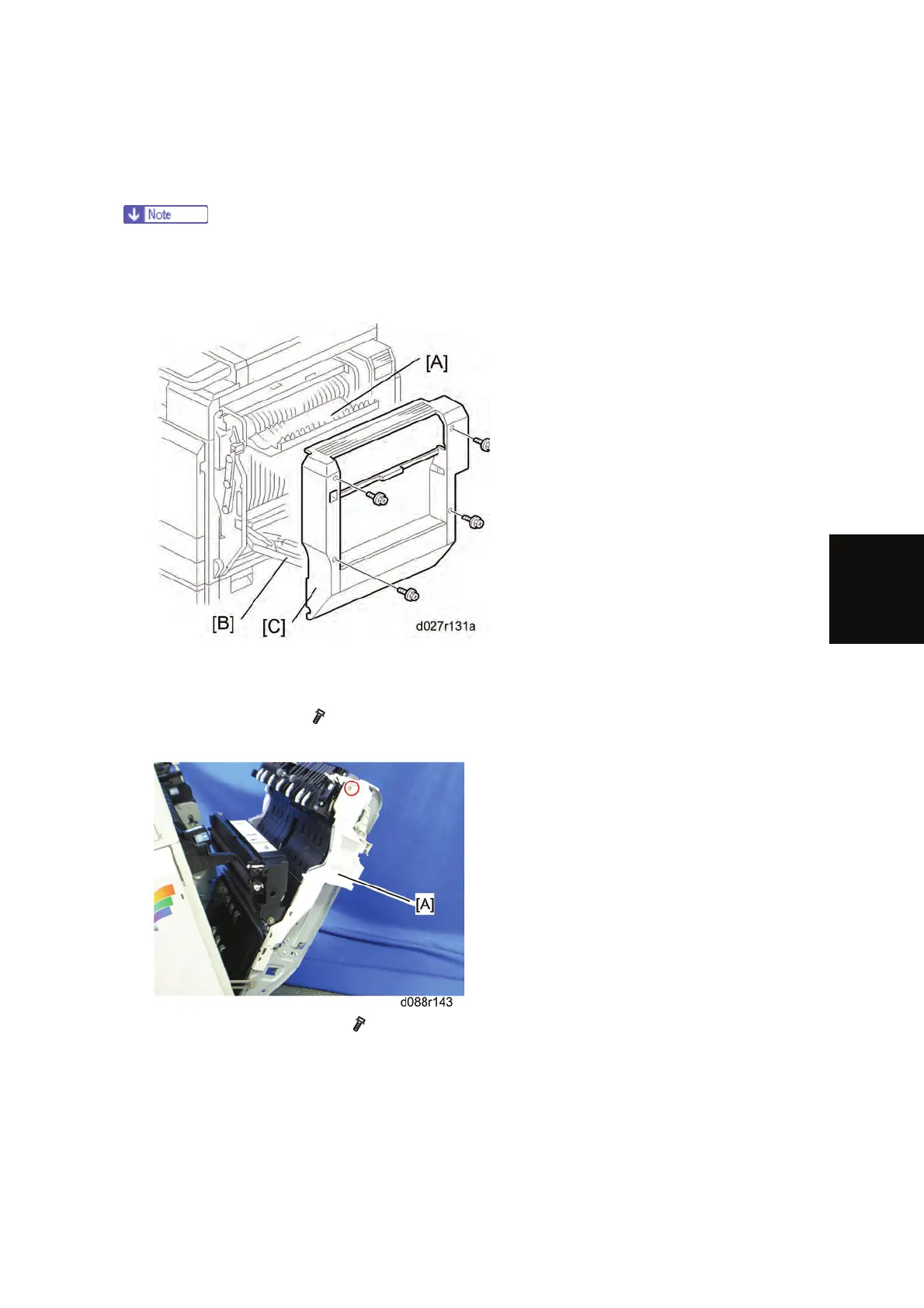

4. Right door cover [C] (
x 4)
5. Open the right door.
6. Right door inner cover [A] (
x 1)
