Ricoh Aficio MP C3501

Fusing
SM 4-125 D086/D087
Replacement
and
Adjustment
4.11.16 THERMOPILE
1. Open the right door.
2. Front right cover (
p.4-20 "Operation Panel")
3. Pull out trays 1 and 2, and the image transfer belt unit.

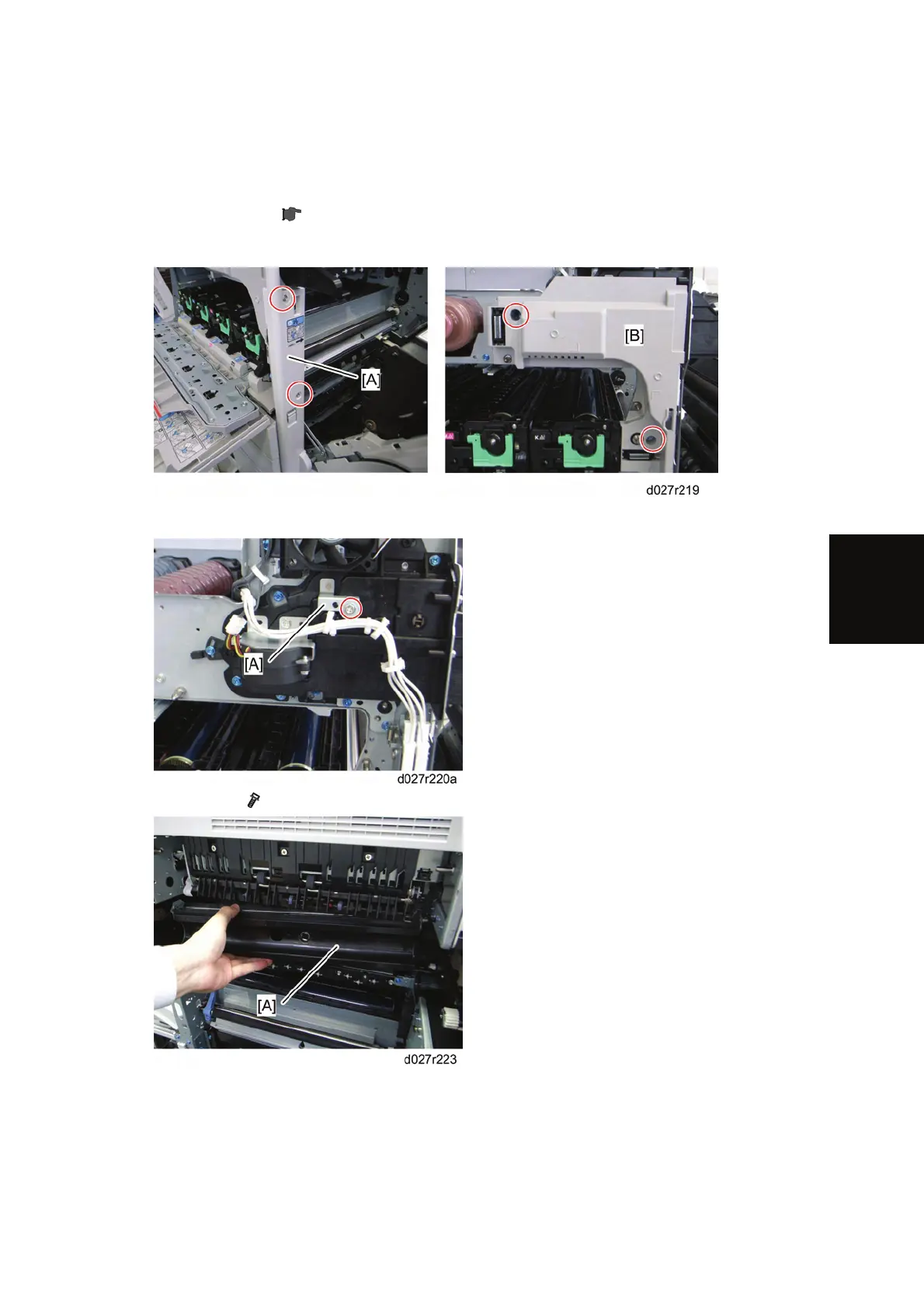

4. Right front cover [A] and front inner cover [B]
5. Bracket [A] (
x 1)
6. IH coil unit [A]
 First, release the front side of the IH coil unit.
