Image Creation
D086/D087 4-58 SM
When reinstalling the second duct fan
Make sure that the second duct fan is installed with its decal facing to the front of the
machine.
4.7.5 THIRD DUCT FAN
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Open the controller box (
p.4-153 "Controller Box")

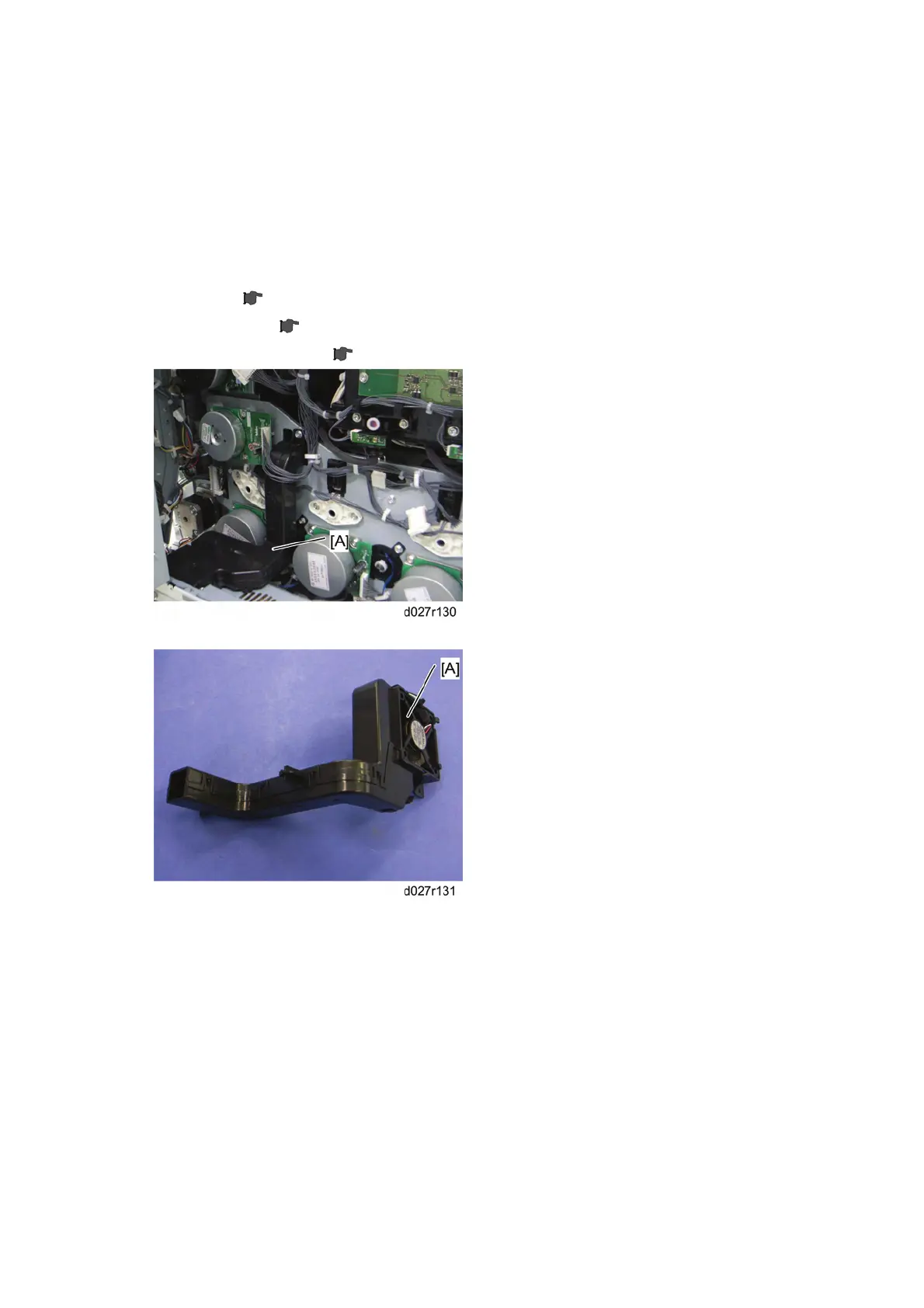

4. Third duct [A] ( x 2, x 1)
5. Third duct fan [A] (3 hooks)
When reinstalling the third duct fan
Make sure that the third duct fan is installed with its decal facing to the upper side of the
machine.
