Drive
SM 5 D539
LCIT RT3010
D539

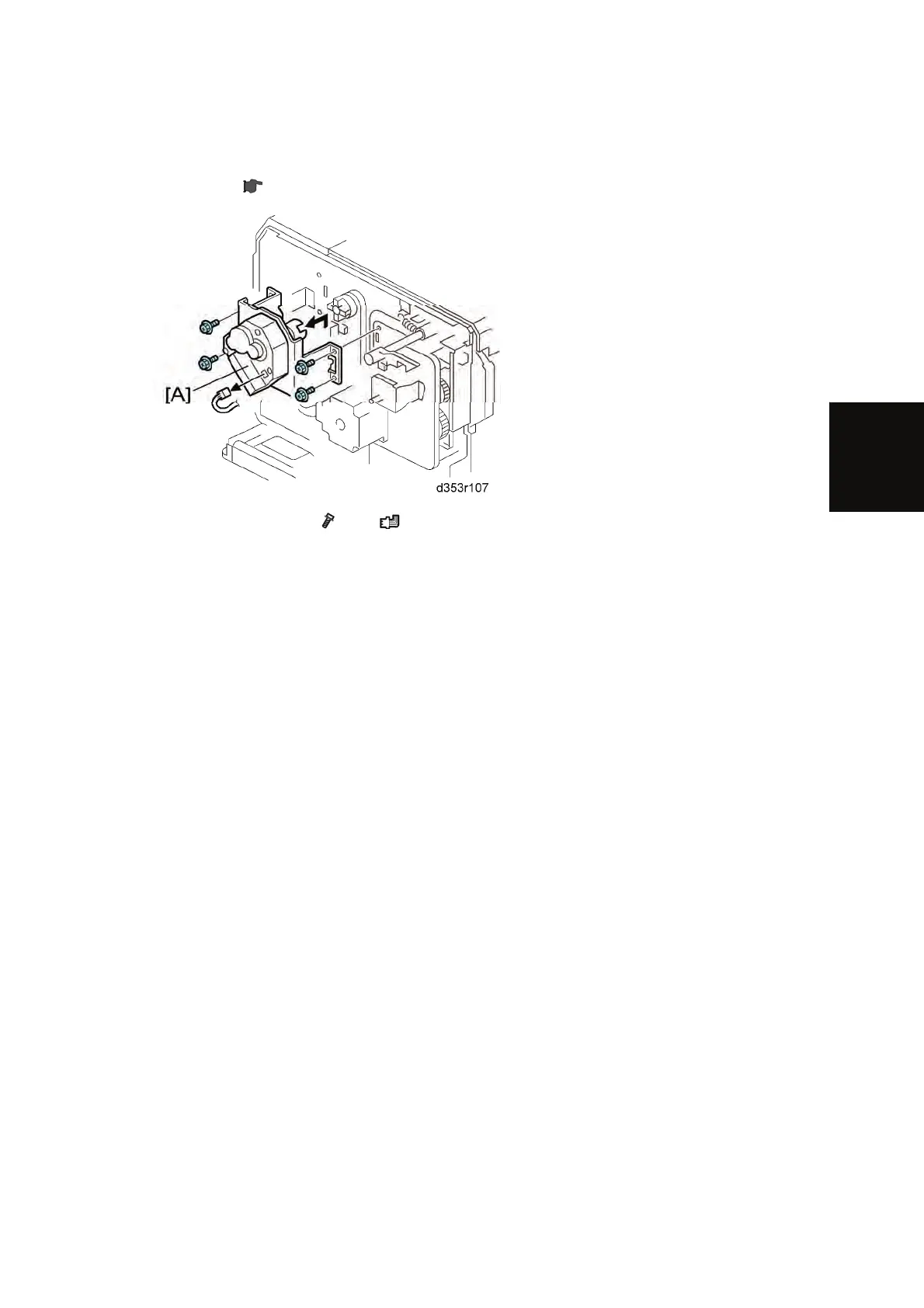

1.3.3 TRAY LIFT MOTOR
1. Rear cover ( p.1)
2. Tray lift motor unit [A] (
x 4, x 1)
