Ricoh Aficio MP C3501 Service Manual

Image Adjustment
D086/D087 4-6 SM
ARDF sub-scan magnification
1. Put the temporary test chart on the ARDF. Then make a copy from one of the feed
stations.
2. Check the magnification ratio. Adjust with SP6-017-001 if necessary.
 Standard: ±5.0%
 Reduction mode: ±1.0%
 Enlargement mode: ±1.0%
4.3.3 REGISTRATION

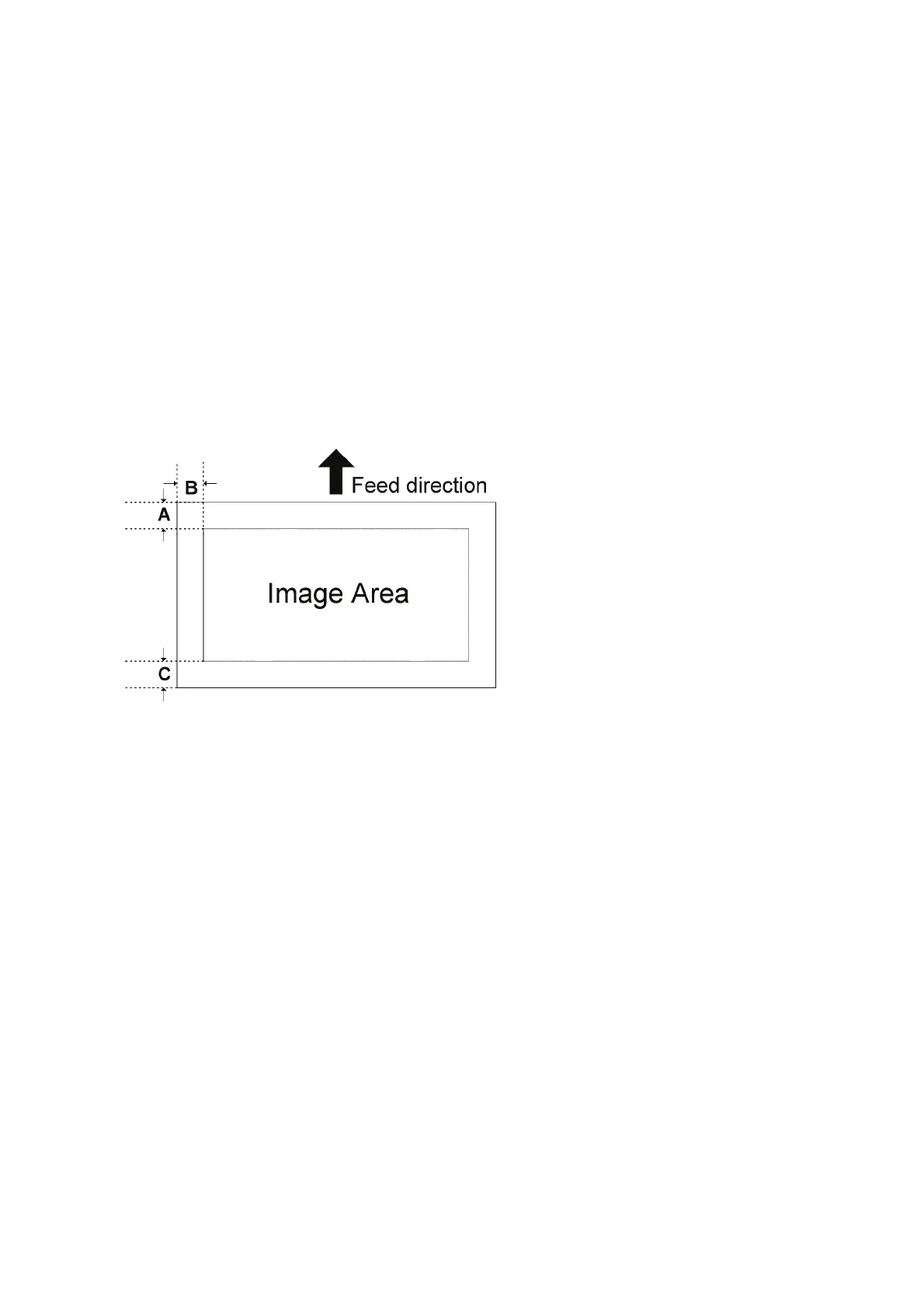

Image Area
A = C = 5.2 mm (0.2"), B = 2.0 mm
Make sure that the registration is adjusted within the adjustment standard range as shown
below.
Leading Edge
Adjusts the leading edge registration for each paper type and process line speed.
Side to Side
Adjusts the side-to-side registration for each paper feed station. Use SP mode (SP1-002) to
adjust the side-to-side registration for the optional paper feed unit, LCT, and duplex unit.
Adjustment Standard
 Leading edge (sub-scan direction): 5.2 ± 2 mm
 Side to side (main-scan direction): 2 ± 1 mm

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
