Ricoh Aficio MP C3501

Image Creation
SM 4-57 D086/D087
Replacement
and
Adjustment

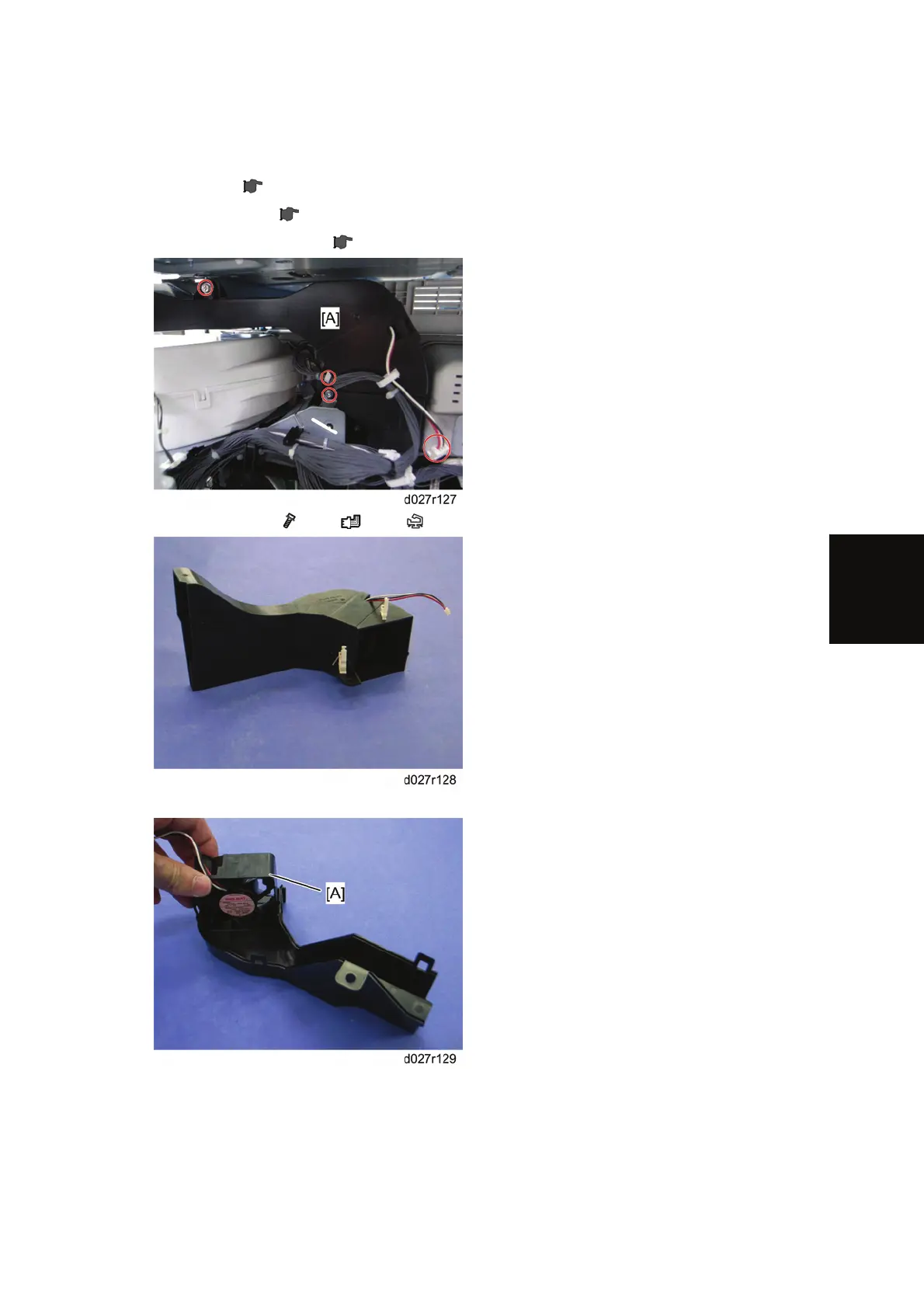

4.7.4 SECOND DUCT FAN
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Open the controller box (
p.4-153 "Controller Box")
4. Second duct [A] ( x 2, x 1, x 2)
5. Split the second duct (4 hooks).
6. Second duct fan [A]
