Image Creation
D086/D087 4-62 SM
When you install the new toner pump unit
Before installing the new toner pump unit, mask the opening of the old toner pump unit with
tape. Dispose of it following local rules.
1. Put a sheet of paper (A3/DLT) inside the machine.
2. Turn up the opening of the toner supply tube, and then remove the object that was used
to clip the opening of the toner supply tube.

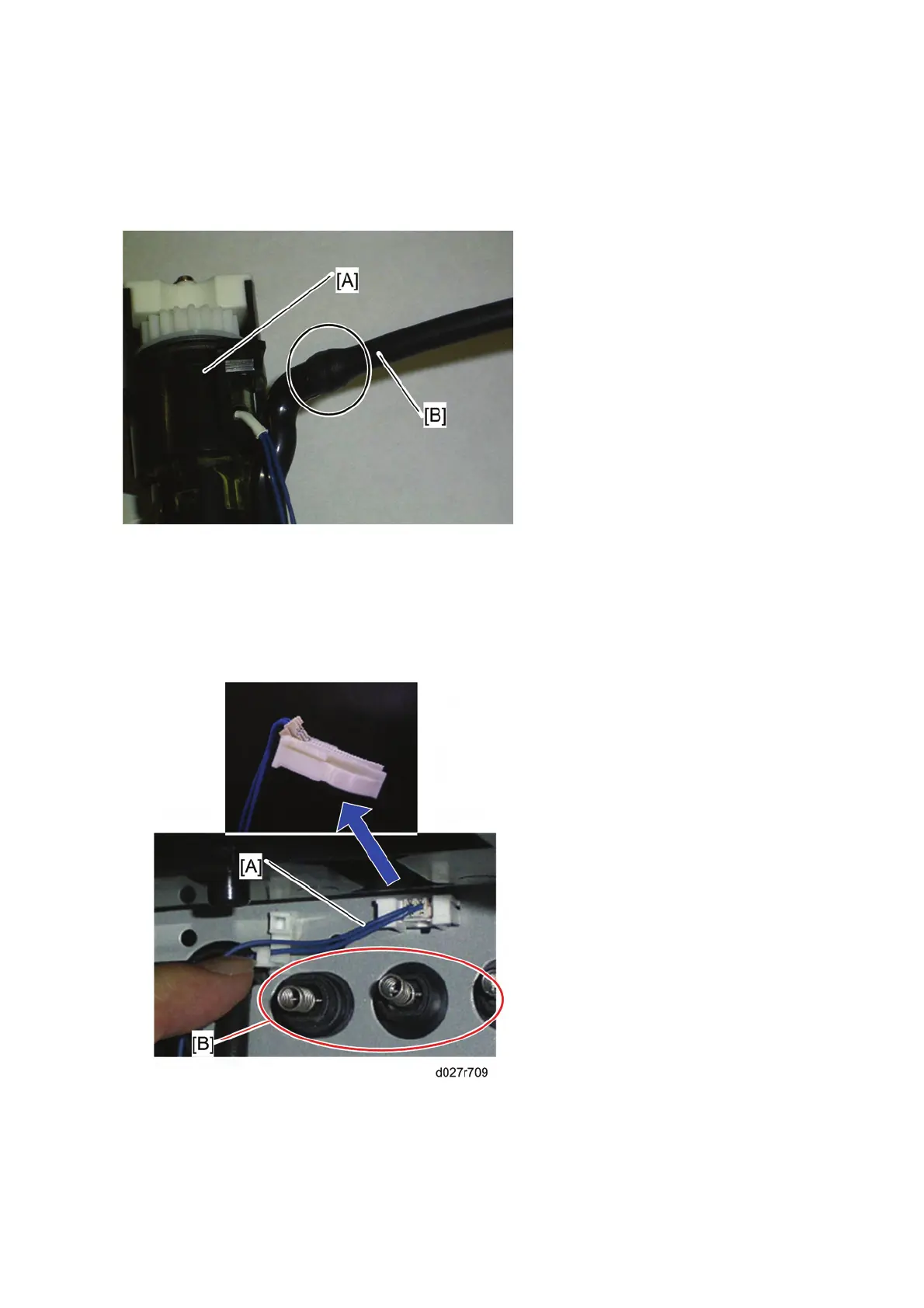

3. Insert the opening of the toner pump unit [A] into the opening of the toner supply tube [B]
as far as possible.
4. Connect the harness [A] to the connector of the machine.
