Ricoh Aficio MP C3501 Service Manual

Laser Optics
SM 4-47 D086/D087
Replacement
and
Adjustment

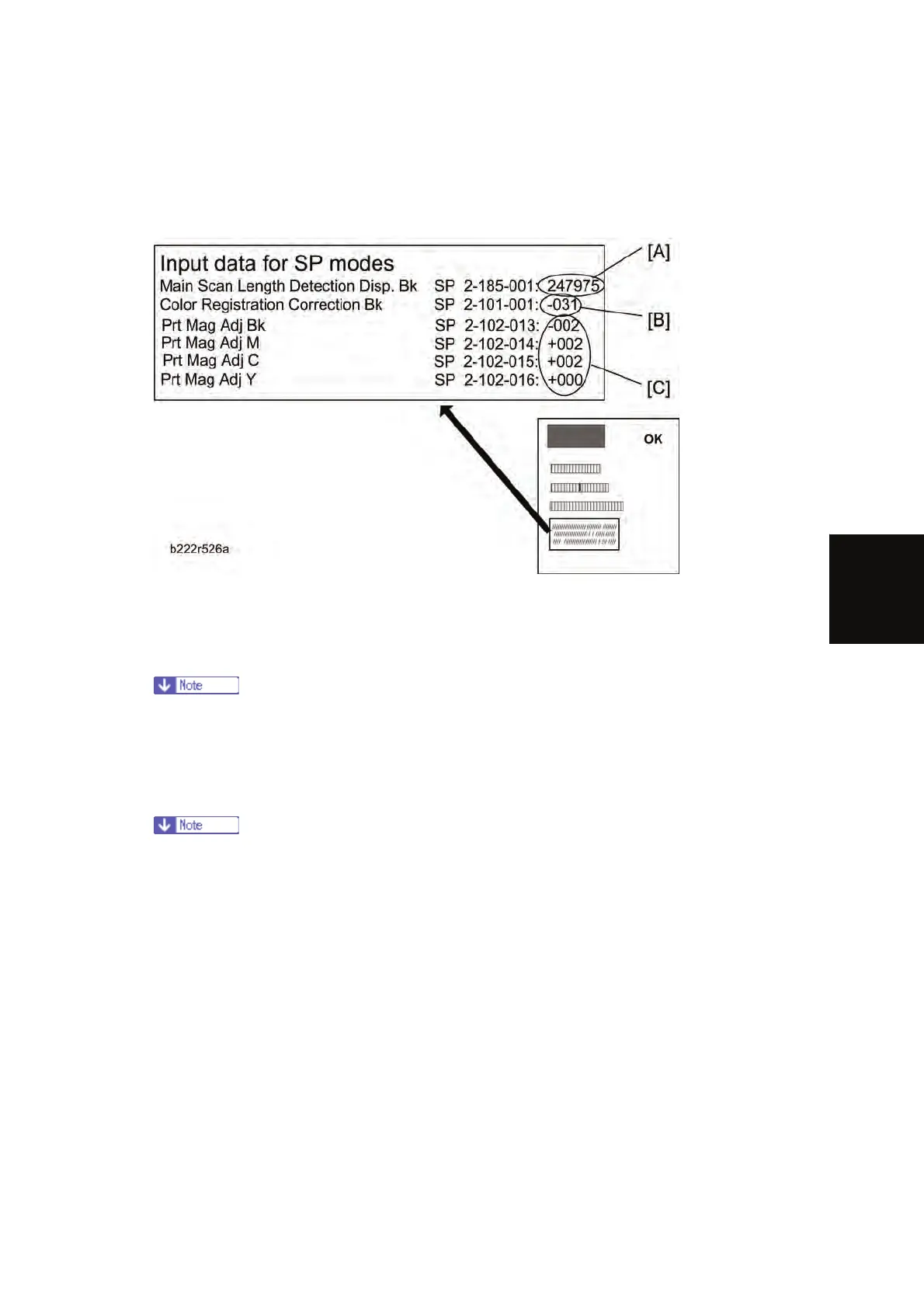

After installing the new laser optics housing unit
Do the following adjustment after installing the new laser optics housing unit.
1. Plug in and turn on the main power switch.
2. Adjust the main scan magnification for K, M, C, Y.
 Input the standard values [C] provided with a new laser optics housing unit for the
main scan magnification adjustment with SP2-102-013, 014, 015, 016.
 The values [C] are different for each laser optics housing unit.
3. Adjust the main scan magnification only for black (K).
 Input the standard value [A] provided with a new laser optics housing unit for the
main scan magnification adjustment with SP2-185-001.
 The value [A] is different for each laser optics housing unit.
 Print the test pattern (14: 1-dot trimming pattern in the SP2-109-003).
 Check that the left and right trim margin is within 4 ± 1 mm. If not, change the
standard value for the main scan magnification adjustment.
4. Adjust the main scan registration only for black (K).
 Input the registration value [B] provided with a new laser optics housing unit for the
main scan registration adjustment with SP2101-001.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
