Drive Unit
D086/D087 4-92 SM

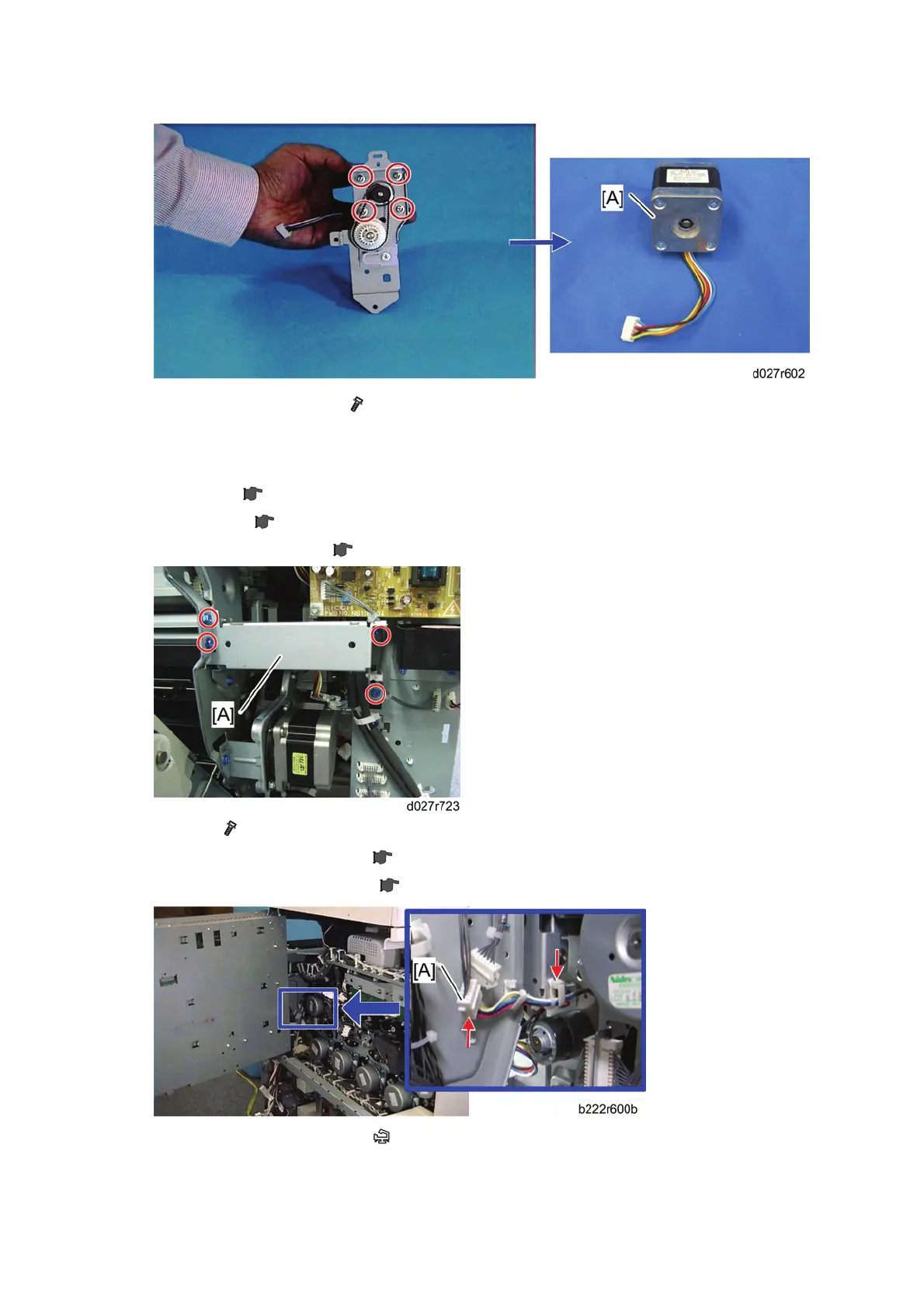

7. Duplex/by-pass motor [A] (
x 4, belt x 1)
4.10.12 PAPER TRANSFER CONTACT MOTOR
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box (
p.4-153 "Controller Box").
4. Stay [A] (
x 4)
5. Pressure roller contact motor (
p.4-88)
6. Duplex/by-pass motor bracket (
p.4-89)
7. Disconnect the connector [A] (
x 1)
To Next Page
