Drive Unit
D086/D087 4-88 SM

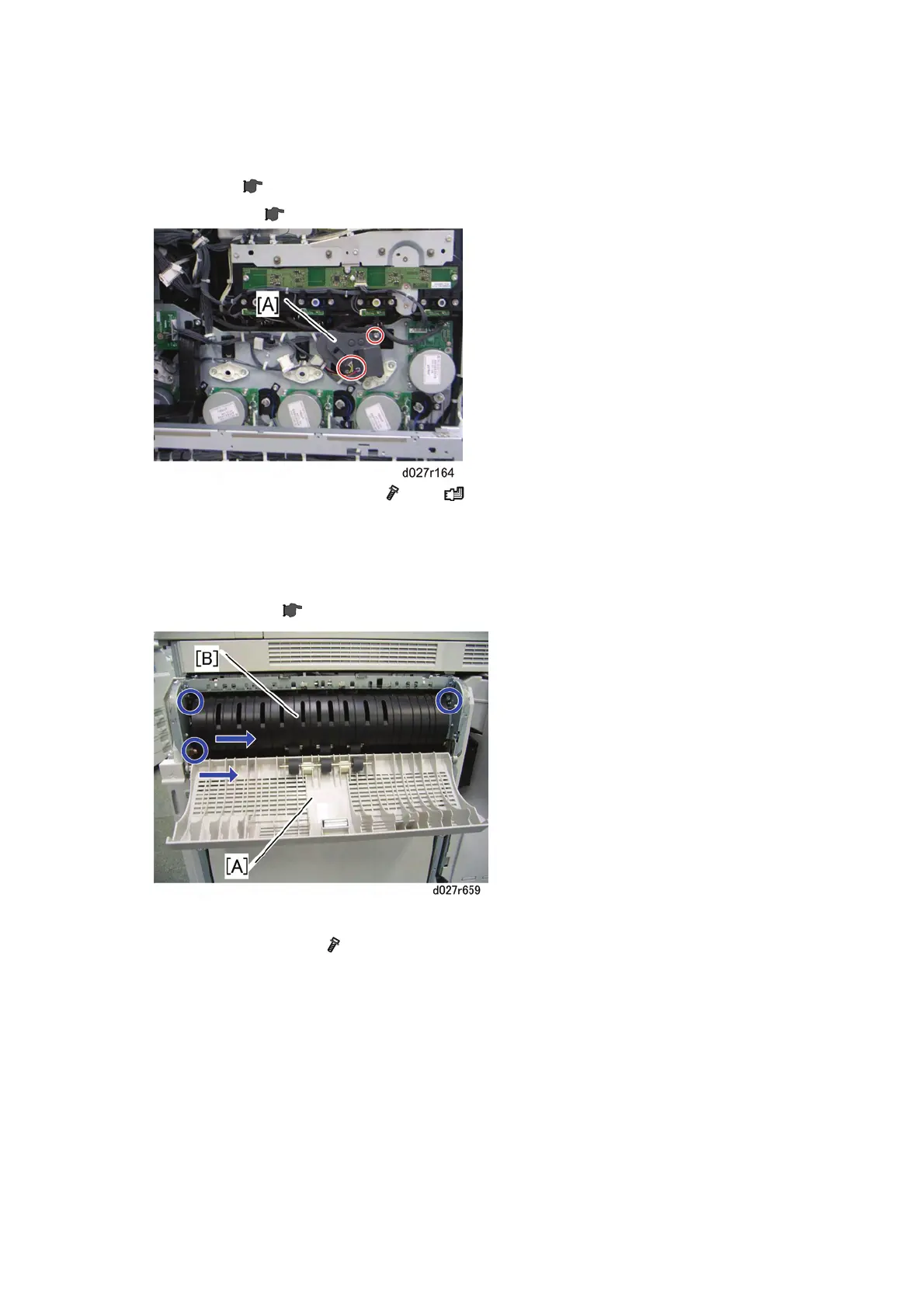

4.10.8 IMAGE TRANSFER BELT CONTACT MOTOR
1. Rear cover ( p.4-19)
2. Controller box (
p.4-153 "Controller Box")
3. Transfer belt contact motor [A] (
x 2, x 2)
4.10.9 DUPLEX INVERTER MOTOR
1. Open the right door.
2. Right door cover (
p.4-136 "By-pass Bottom Tray")
3. Duplex door [A] (2 hooks)
4. Duplex guide plate [B] (
x 3, 2 hooks)
To Next Page
