Ricoh Aficio MP C3501 Service Manual

Controller Options
SM 2-111 D086/D087
Installation
2.26.7 IEEE 802.11A/G INTERFACE UNIT TYPE J
Installation Procedure
 Unplug the main machine power cord before you do the following procedure.
You can only install one of the following network interfaces at one time: (IEEE 802.11 a/g,
(Wireless LAN), IEEE1284, Bluetooth).

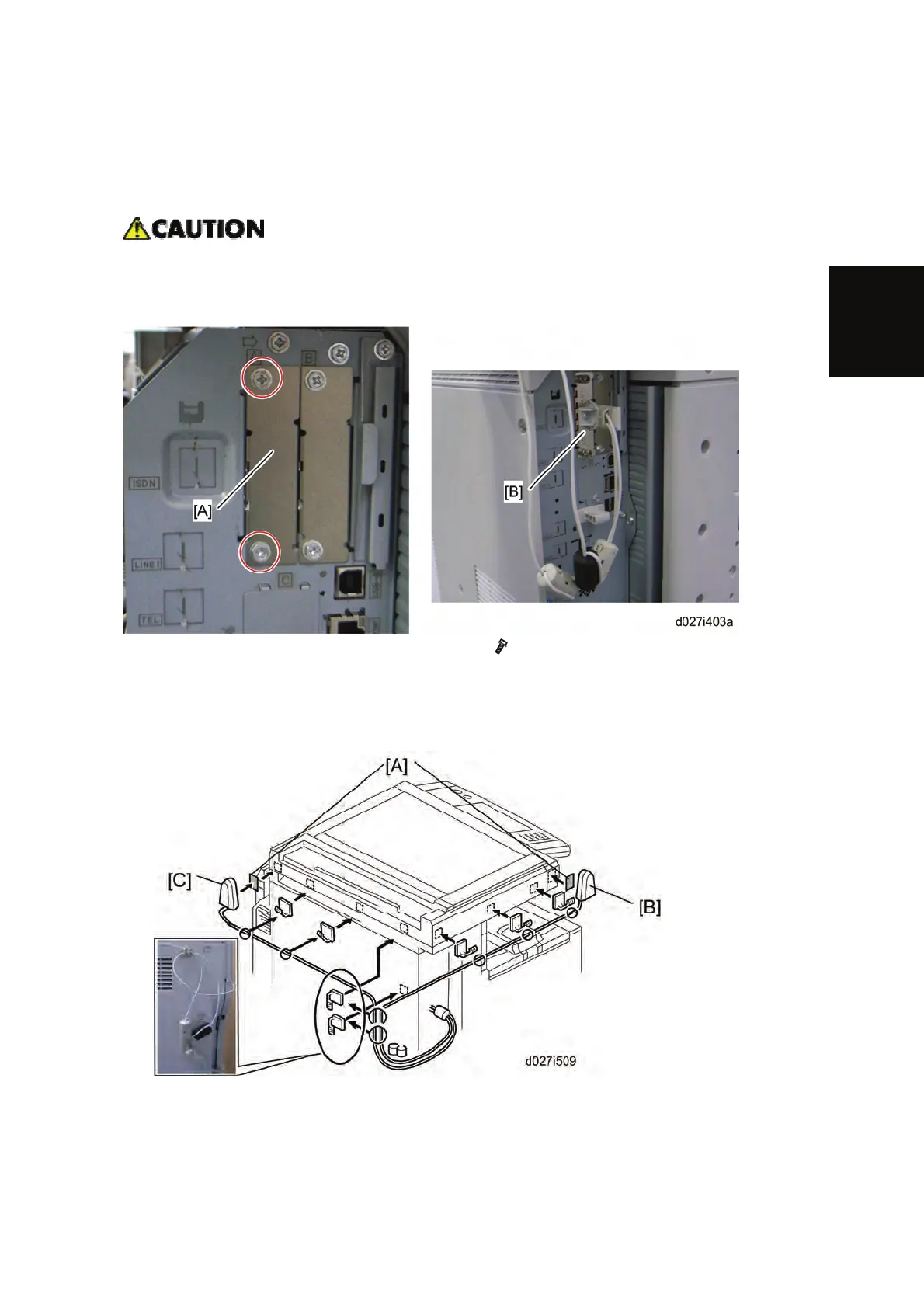

1. Remove the slot cover [A] from the board slot (
x 2).
2. Install the wireless LAN board [B] (Knob-screw x 2) into the board slot.
3. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the
end of this section).
4. Peel off the double-sided tapes on the Velcro fasteners [A], and then attach them [A] at
the front left and rear left of the machine.
5. Attach "ANT1" (having a black ferrite core) [B] to the front left of the machine.
6. Attach "ANT2" (having a white ferrite core) [C] to the rear right of the machine.
