Ricoh Aficio MP C3501 Service Manual

Controller Options
D086/D087 2-112 SM
 "ANT1" is a transmission/reception antenna and "ANT2" is a reception antenna.
Do not attach them at the wrong places.
7. Attach the clamps as shown above.
8. Wire the cables and clamp them ( x 7).
 Make sure that the cables are not slack. Keep them wired tightly along the
covers.
You may have to move the machine if the reception is not clear.
 Make sure that the machine is not located near an appliance or any type of equipment
that generates strong magnetic fields.
 Put the machine as close as possible to the access point.
Installing Various Hardware Combinations

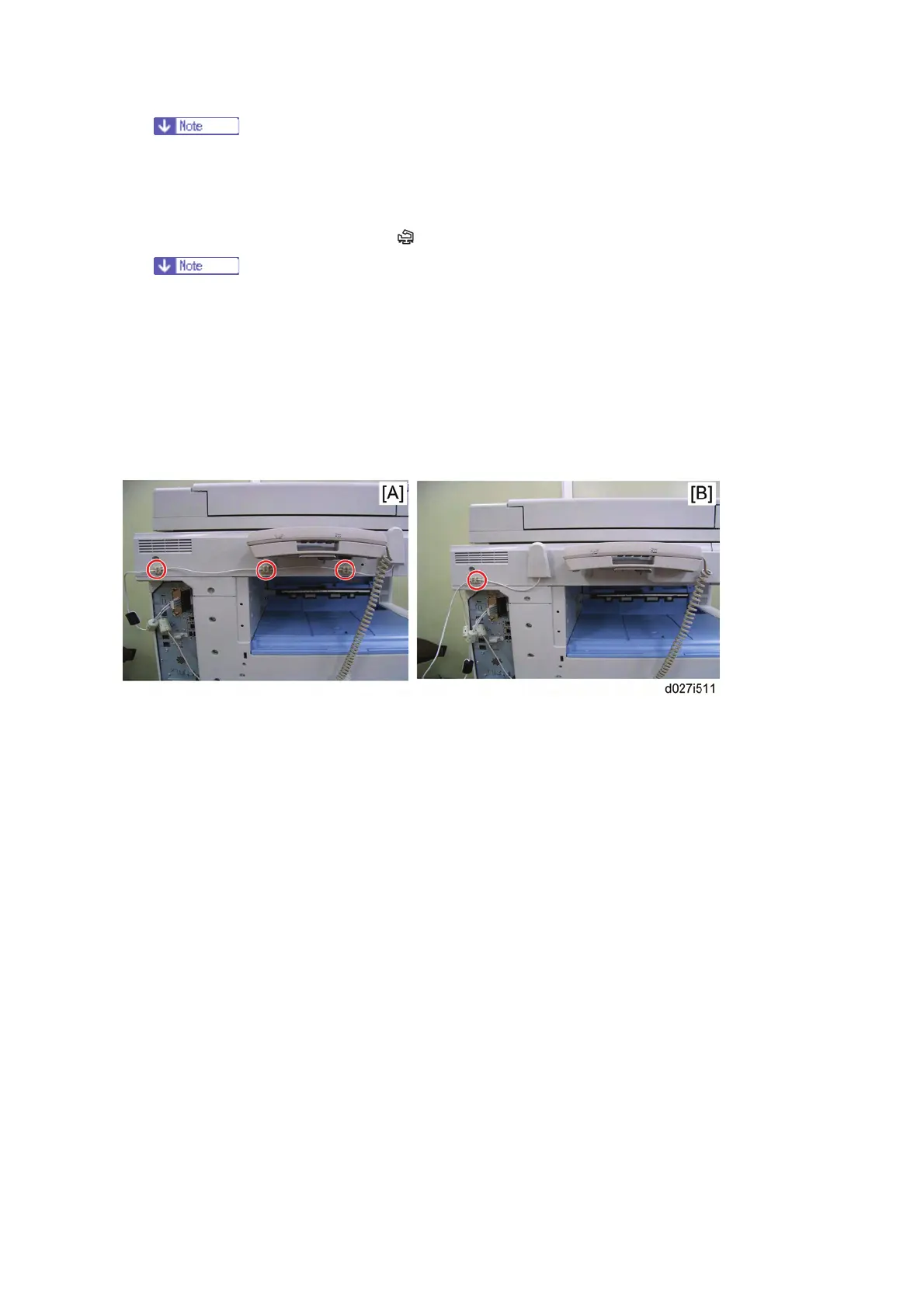

 Refer to the above picture [A] when installing the handset.
 Refer to the above picture [B] when installing the handset and the USB2.0/SD.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
