PAPER FEED-OUT MECHANISM
B408 24 SM
4.13 PAPER FEED-OUT MECHANISM

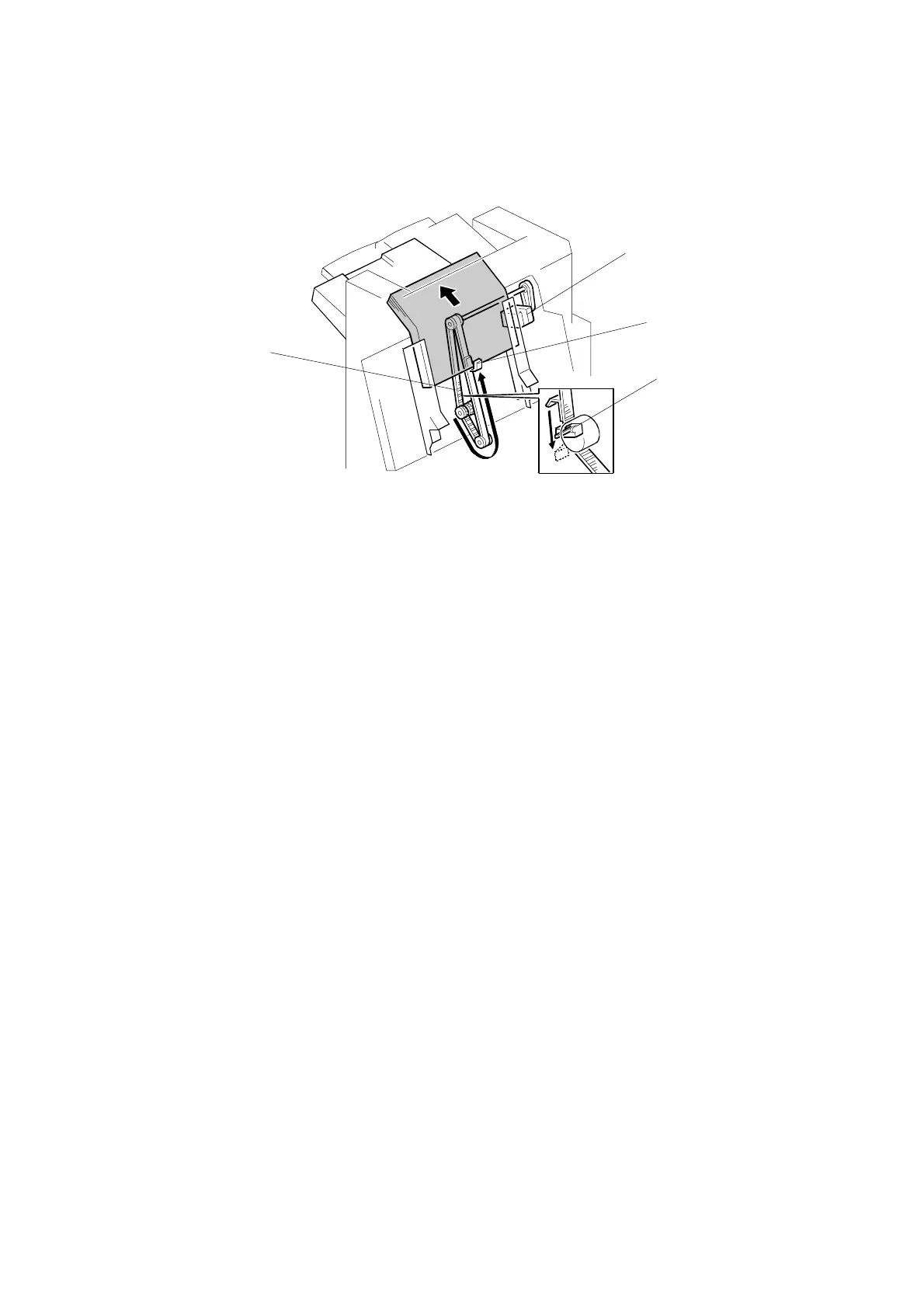

After the copies have been stapled, the stack feed-out motor [A] starts. The pawl
[B] on the stack feed-out belt [C] transports the set of stapled copies up and feeds
it to the shift roller. The shift roller takes over stack feed-out after the leading edge
reaches this roller.
Just before the stapled stack passes through the lower tray exit sensor, the stack-
feed-out motor turns off until the shift rollers have completely fed the stack out to
the lower tray. Then, the stack-feed-out motor turns on again until the pawl [B]
actuates the stack feed-out belt home position sensor [D].
B408D118.WMF
[A]
[B]
[C]
[D]
