Product Overview
SM 1-3 D086/D087
Product
Information

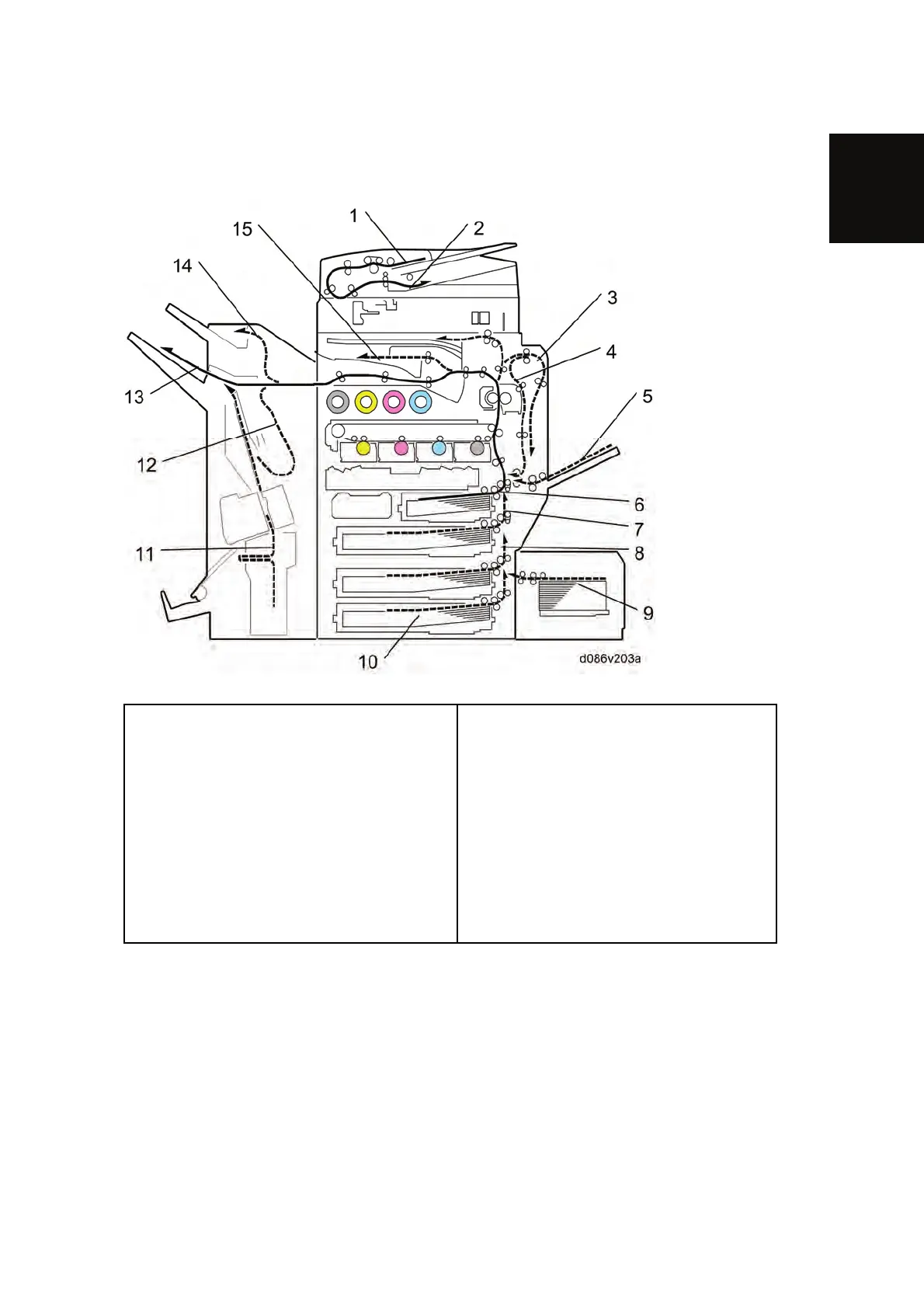

1.2.2 PAPER PATH
1. Original tray
2. Original exit tray
3. Duplex inverter
4. Duplex feed
5. By-pass tray feed
6. Tray 1 feed
7. Tray 2 feed
8. Tray 3: Optional paper feed unit/LCT
9. Tray 5: Optional LCT 1200
10. Tray 4: Optional paper feed unit
11. Finisher stapler (Optional)
12. Finisher punch (Optional)
13. Finisher lower tray (Optional)
14. Finisher proof tray (Optional)
15. Inner Tray
The 1000-sheet finisher and 1000-sheet booklet finisher require the bridge unit and one from
the two-tray paper feed unit or the LCT.
