Ricoh Aficio MP C3501 Service Manual

ADF Handle Type B (D366)
SM 2-45 D086/D087
Installation
2.11.2 INSTALLATION PROCEDURE
 Turn off the main switch of the copier and unplug the power cord before you start the
installation procedure.
Preparing before Installing the DF Handle

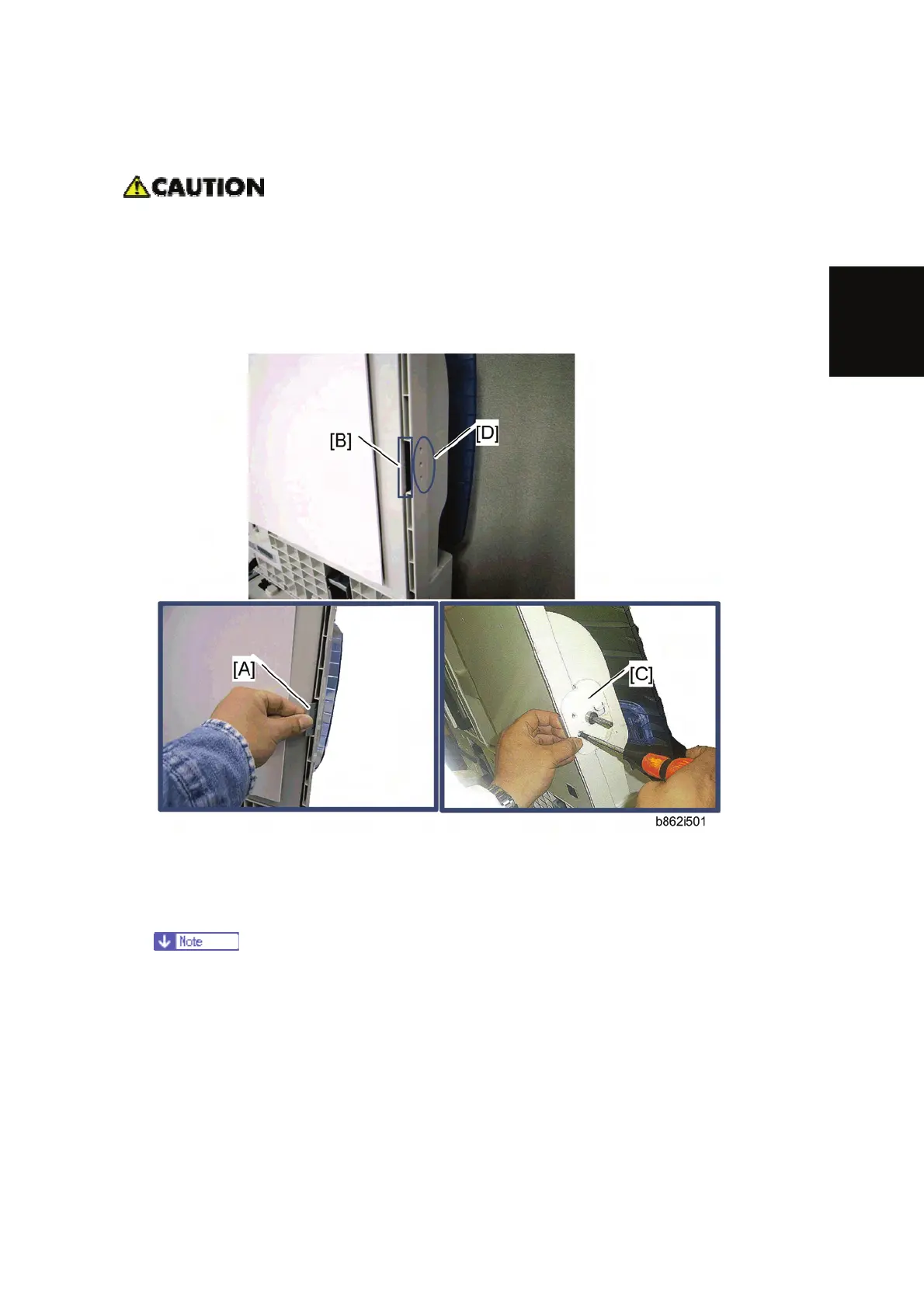

1. Open the ADF unit.
2. Hold the securing bracket [A] at the location [B], inside the ADF cover.
3. Secure the stud bracket [C] to the outside of the ADF cover at location [D] with two
screws ( x 2: M3x8).
 The two screws must go through the ADF cover and the securing bracket [A].
