Caster Table Type A (D446)
D086/D087 2-26 SM
2.5.2 INSTALLATION PROCEDURE
1. Put the caster table on a flat place.

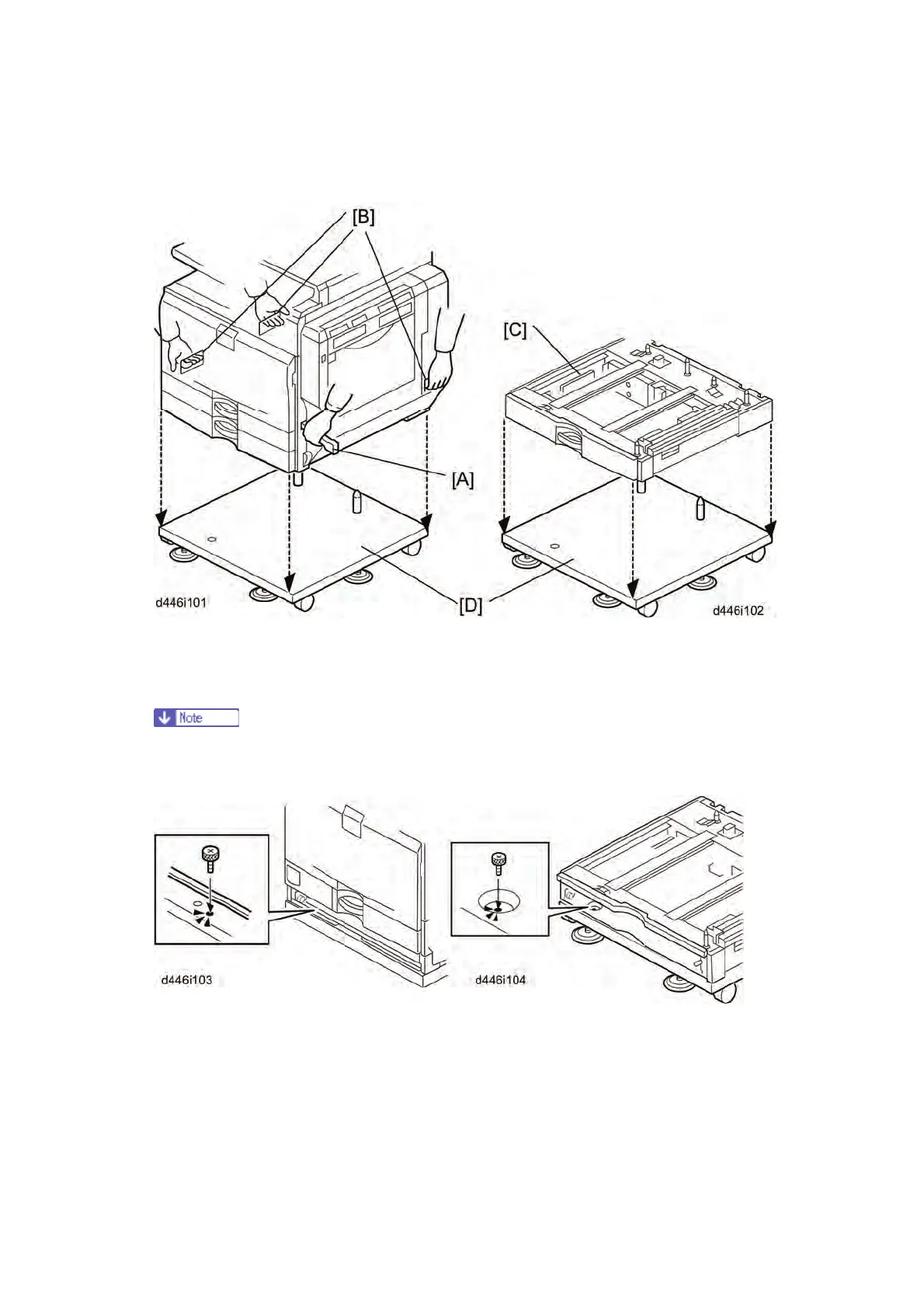

2. Grasp the handle [A] and grips [B] of the machine, if the copier is to be installed on the
caster table.
3. Lift the copier or one-tray paper feed unit [C], and then install it on the caster table [D].
 Hold the handle and grips of the machine when you lift and move the machine.
4. Pull out tray 2 of the mainframe or the tray of the one-tray paper feed unit.
5. Secure the machine or one-tray paper feed unit to the caster table (stud screw x 1)
6. Reinstall the tray in the mainframe or one-tray paper feed unit.
7. Adjust the five leveling adjustors of the caster table.
