Ricoh Aficio MP C3501 Service Manual

Scanner Unit
SM 4-35 D086/D087
Replacement
and
Adjustment

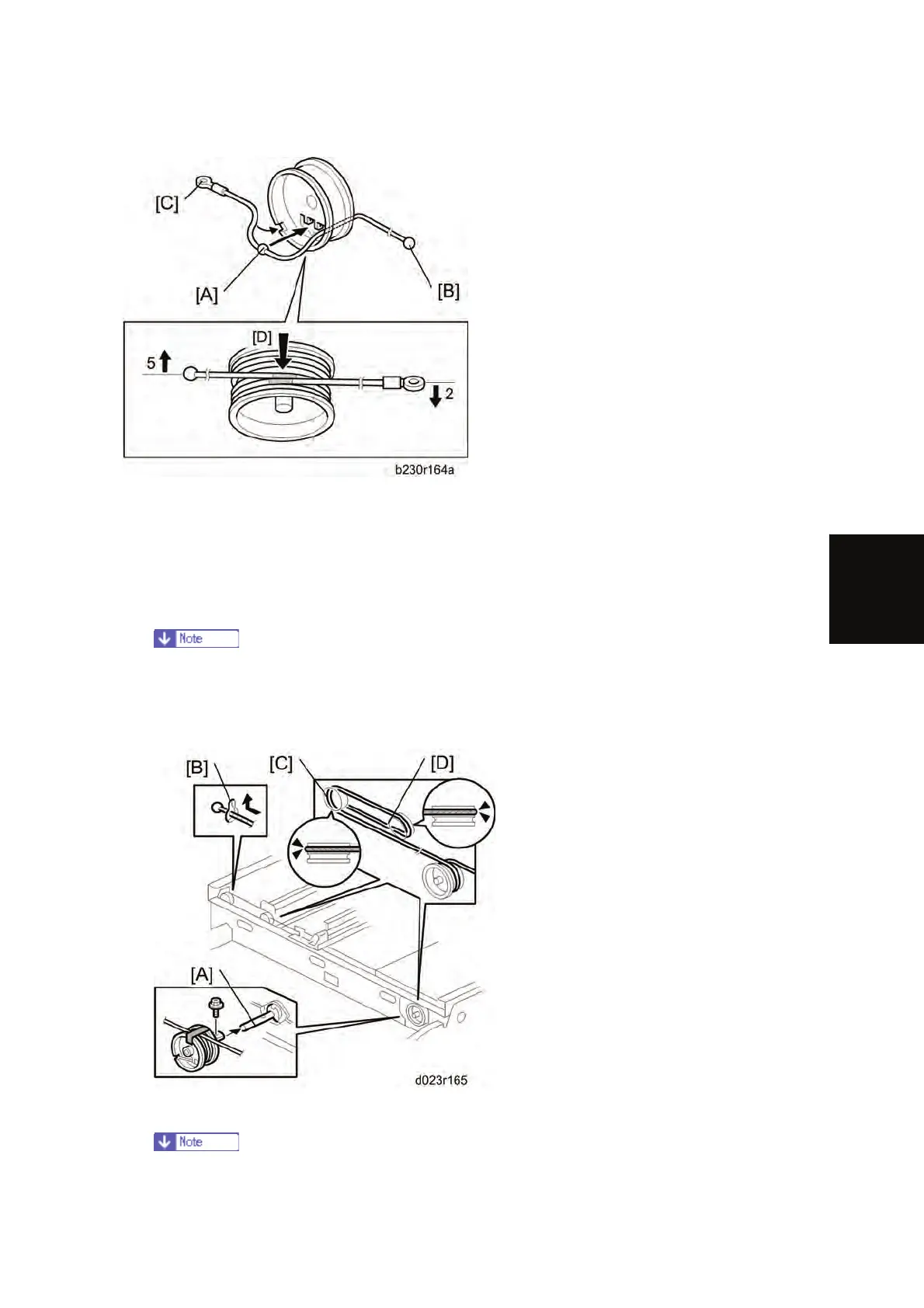

Reinstalling the Front Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
2. Pass the right end (with the ball) [B] through the square hole. Pass the left end (with the
ring) [C] through the notch.
3. Wind the right end counterclockwise (shown from the machine’s front) five times. Wind
the left end clockwise twice.
 The two red marks [D] come together when you have done this. Stick the wire to
the pulley with tape. This lets you easily handle the assembly at the time of
installation.
4. Install the drive pulley on the shaft [A].
 Do not attach the pulley to the shaft with the screw at this time.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
