Scanner Unit
D086/D087 4-36 SM

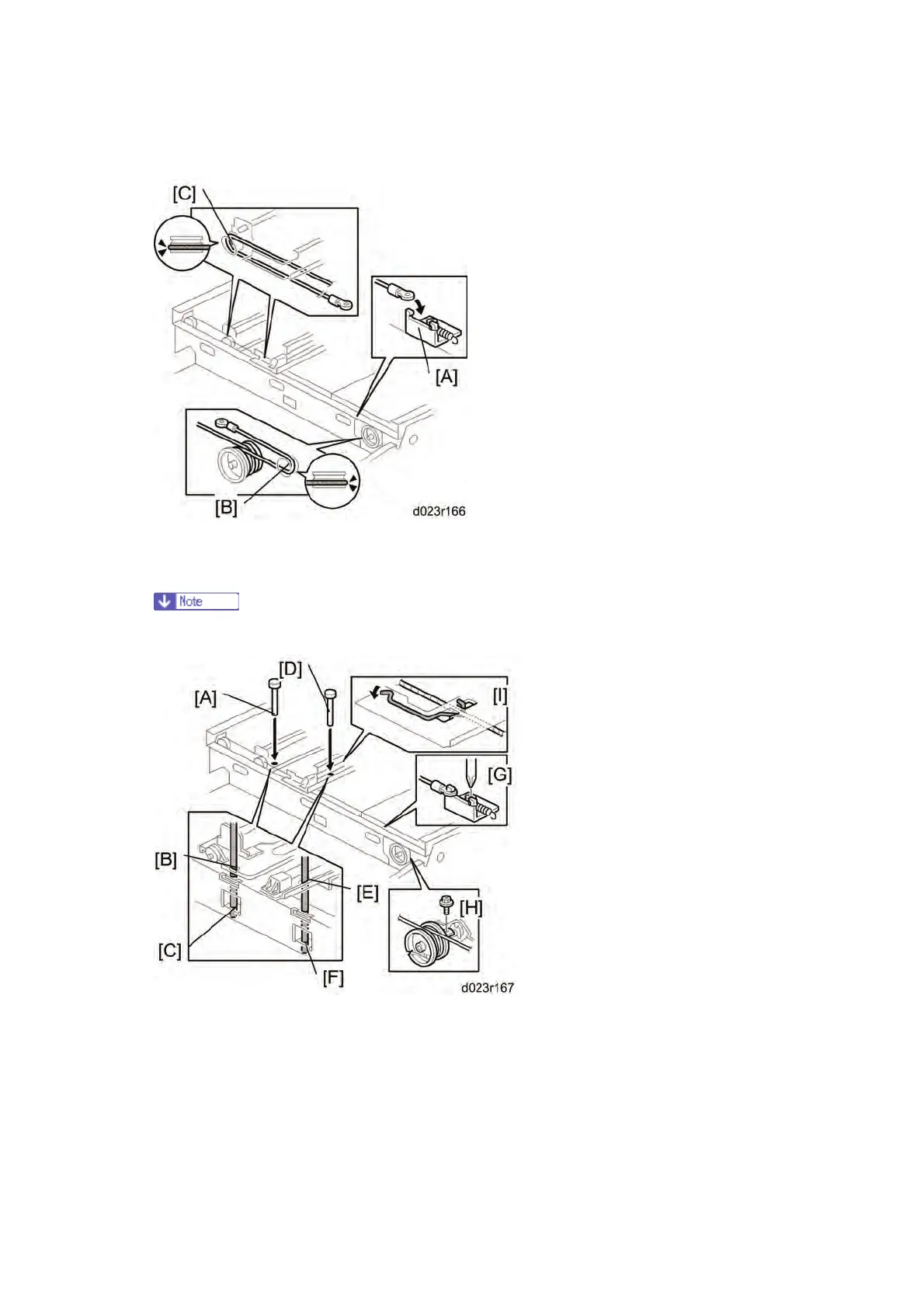

5. Insert the left end into the slit [B]. The end should go via the rear track of the left pulley [C]
and the rear track of the movable pulley [D].
6. Hook the right end onto the front scanner wire bracket [A]. The end should go via the
front track of the right pulley [B] and the front track of the movable pulley [C].
 Do not attach the scanner wire bracket with the screw at this time.
7. Remove the tape from the drive pulley.
8. Insert a scanner-positioning pin [A] through the 2nd carriage hole [B] and the left holes
[C] in the front rail. Insert another scanner positioning pin [D] through the 1st carriage
hole [E] and the right holes in the front rail [F].
9. Insert two more scanner positioning pins through the holes in the rear rail.
10. Screw the drive pulley to the shaft [G].
