Ricoh Aficio MP C3501

Electrical Components
SM 4-157 D086/D087
Replacement
and
Adjustment

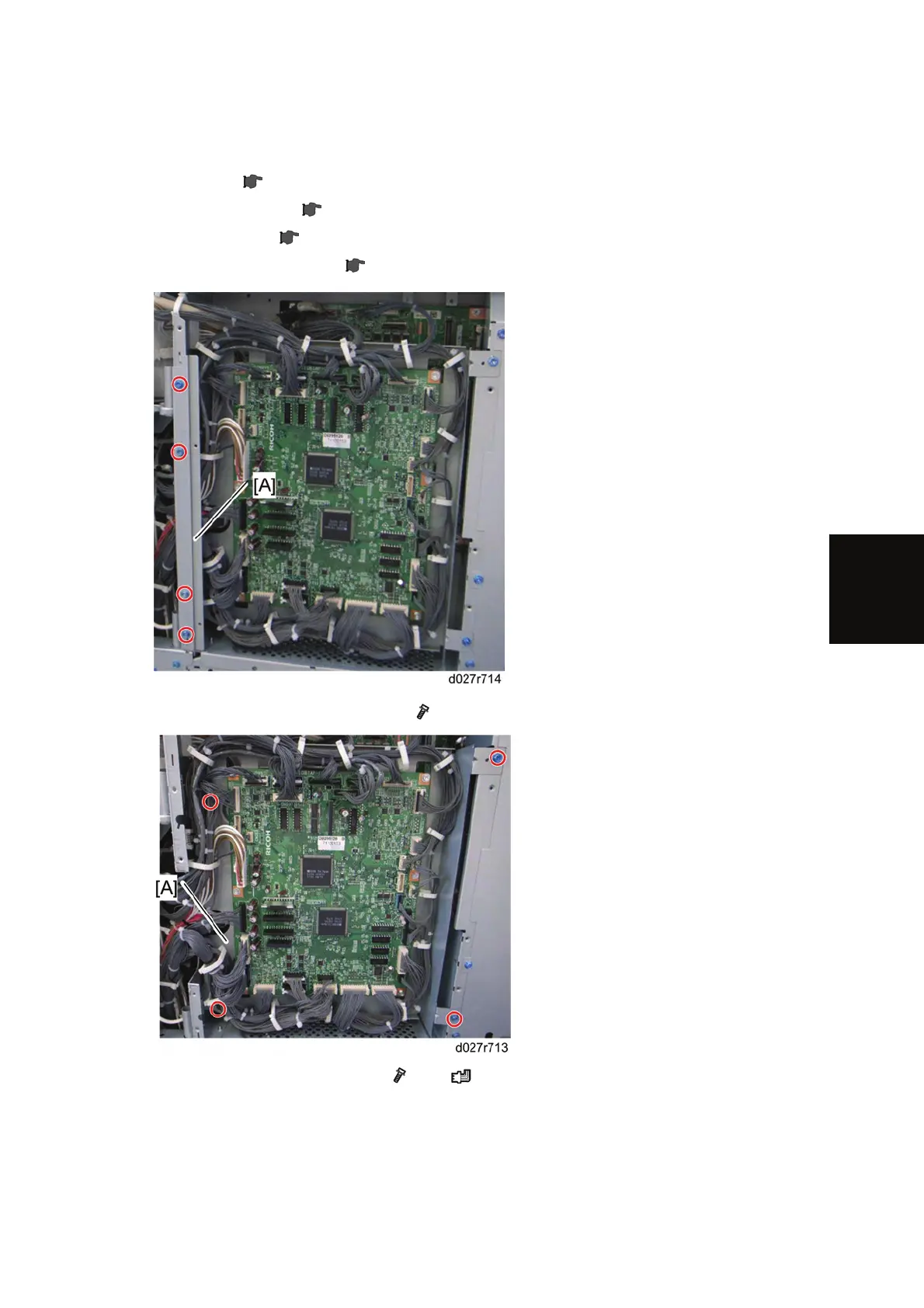

When removing the controller box
1. Rear cover ( p.4-19)
2. Scanner rear cover (
p.4-26 "Exposure Lamp")
3. Right rear cover (
p.4-19)
4. Controller box right cover (
p.4-152)
5. Remove the controller box stay [A] ( x 4).
6. Move the IOB bracket [A] aside (
x 4, x All).
