Laser Optics
D086/D087 4-50 SM
To check if SP 2-111-1 was successful, watch the screen during the process. A message is
displayed at the end. Also, you can check the result with SP 2-194-10 to -12.
After you replace the motor, do the adjustments in the following section of the manual: Image
Adjustment – Registration.

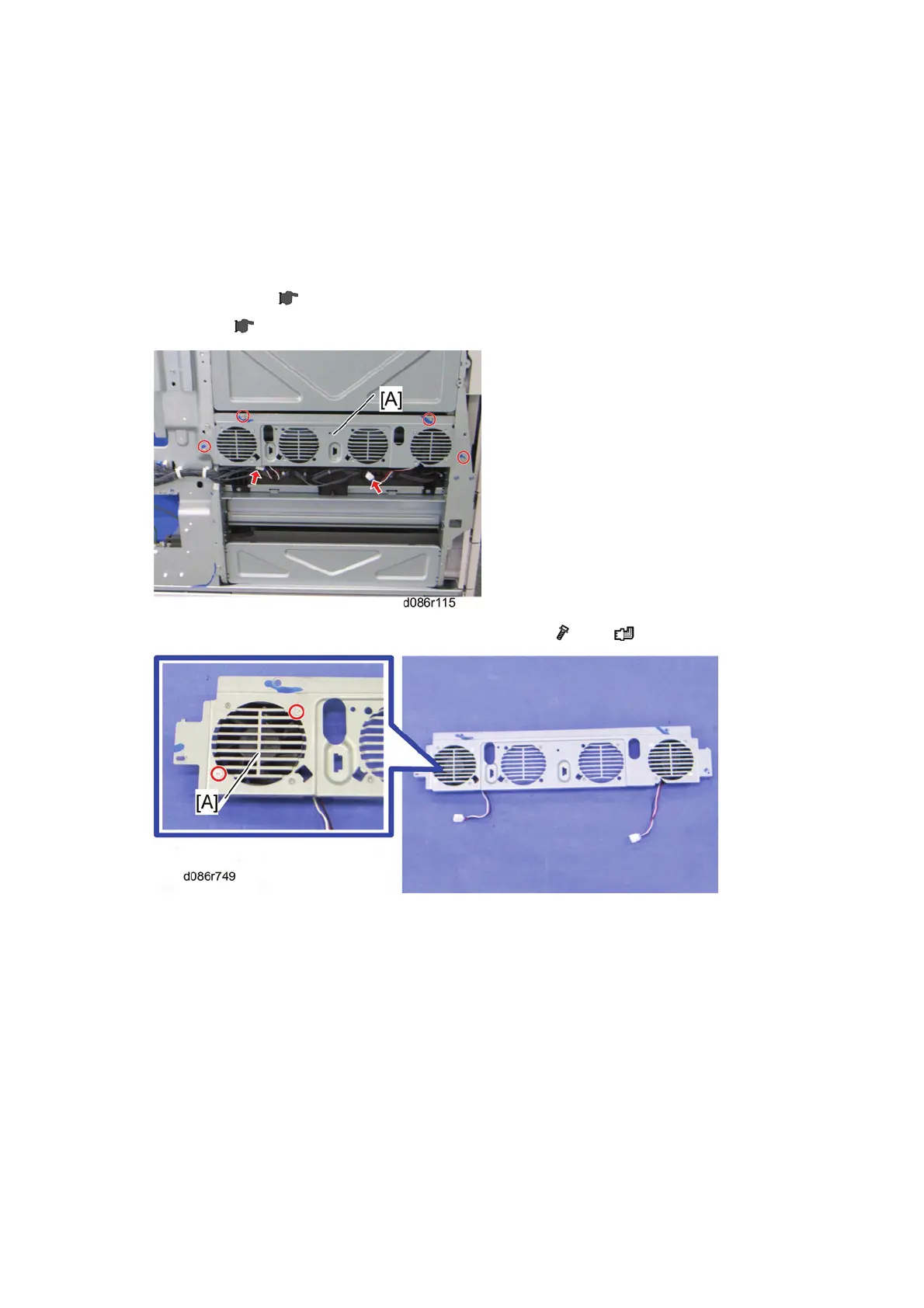

4.6.5 AIRFLOW FANS
1. Controller cover ( p.4-18)
2. Left cover (
p.4-18)
3. Airflow fan bracket [A] for the laser housing optics unit (
x 4, x 2)
4. Airflow fans [A]
There are two airflow fans on the baracket.
