Ricoh Aficio MP C3501 Service Manual

1000-Sheet
Finisher
B408
MAIN PCB
SM 1 B408
1. REPLACEMENT AND ADJUSTMENT

CAUTION
Turn off the main power switch and unplug the machine before beginning
any of the procedures in this section.
NOTE: This manual uses the following symbols.

: See or Refer to

: Screws

: Connector

: Clip ring

: E-ring

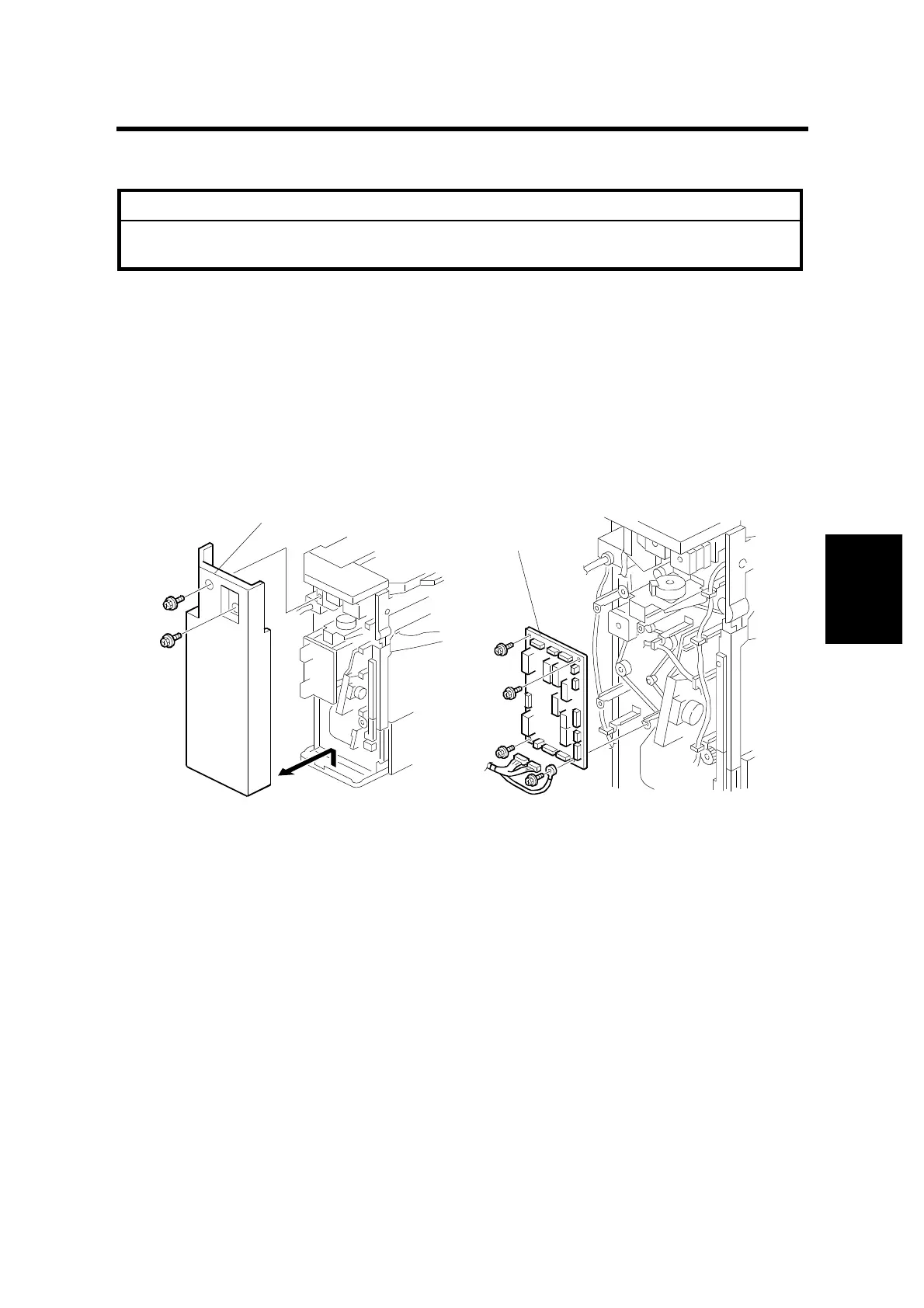

1.1 MAIN PCB
1. Rear cover [A] (

x 2)
2. Main PCB [B] (

x 4, All

)
B408R110.WMF
B408R109.WMF
[B]
[A]
