Ricoh Aficio MP C3501

Fusing
D086/D087 4-124 SM

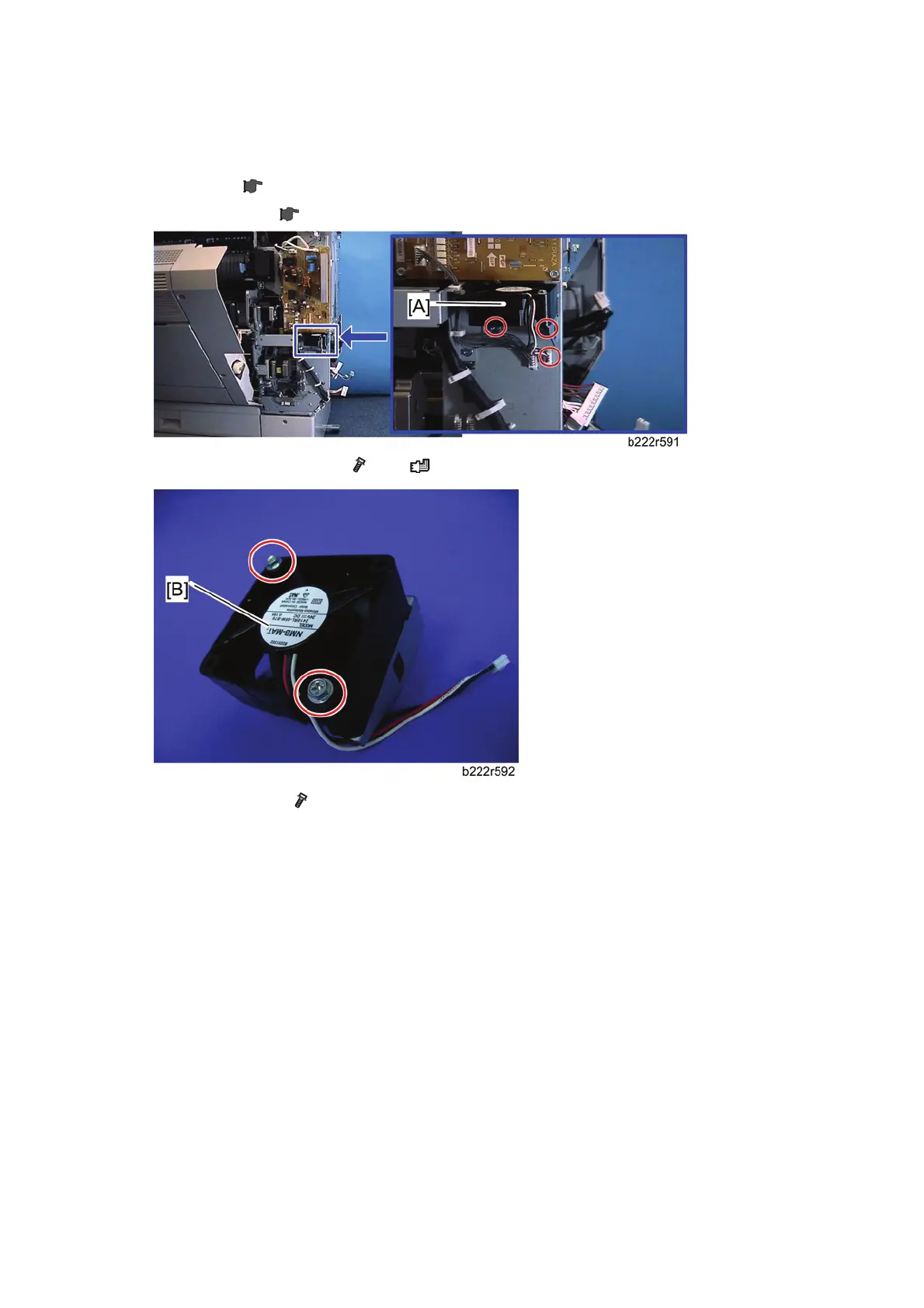

4.11.15 IH (INDUCTION HEATING) INVERTER FAN
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. IH inverter fan bracket [A] (
x 2, x 1)
4. IH inverter fan [B] (
x 2)
When installing the IH inverter fan
Make sure that the IH inverter fan is installed with its decal facing the upper side of the
machine.
