Fusing
SM 4-109 D086/D087
Replacement
and
Adjustment
When re-installing the heating roller

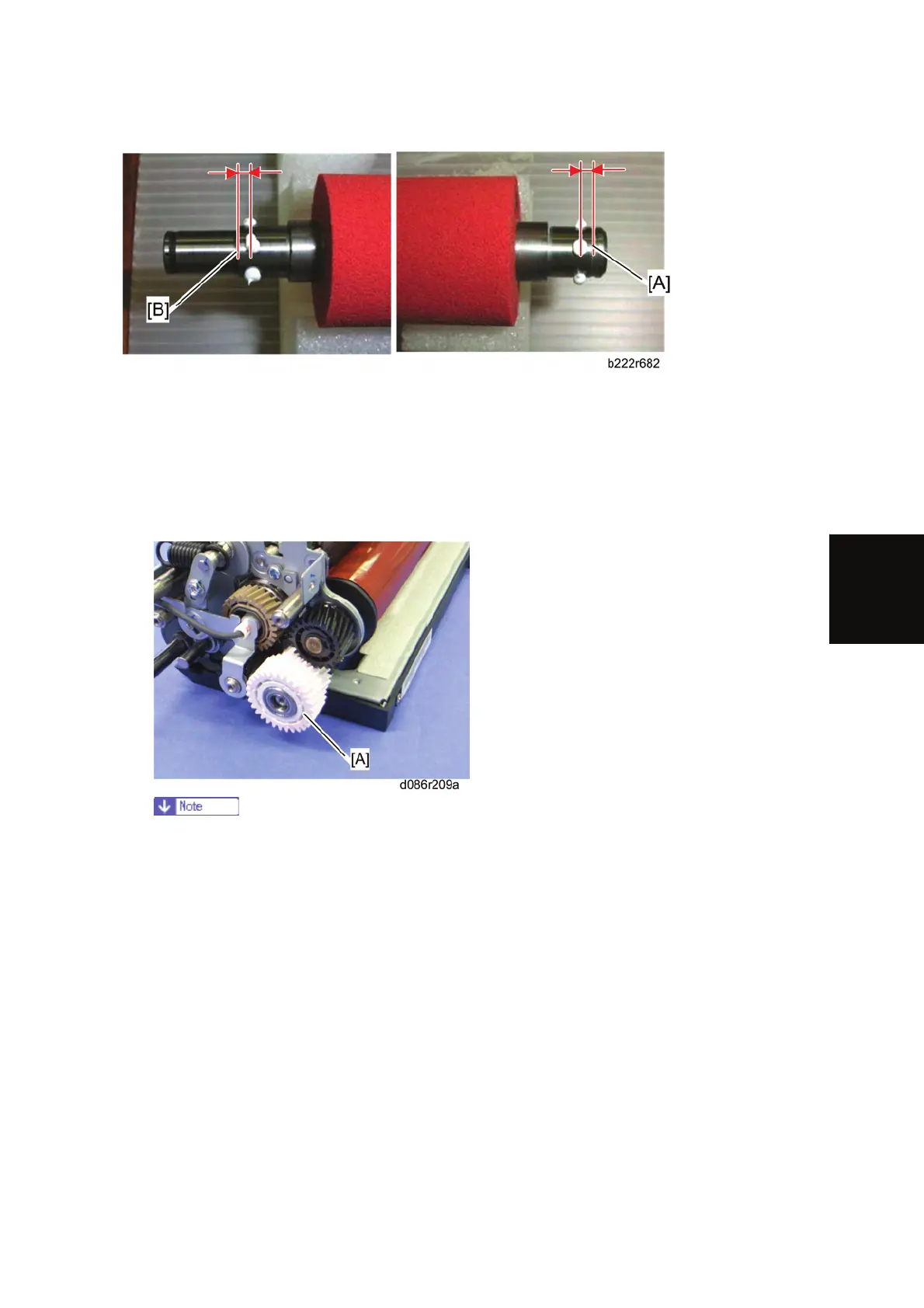

1. Apply three spots of "Barrierta S552R" (the diameter of each spot must be about 3 mm in
diameter, and approximately 0.1 g in weight) to the front shaft of the heating roller at 2 - 3
mm from the notch [A].
2. Apply three spots of "Barrierta S552R" (the diameter of each spot must be about 3 mm in
diameter, and approximately 0.1 g in weight) to the rear shaft of the heating roller at 2 - 3
mm from the edge [B] (rear side of the heating roller).
 Do not wipe off the grease of the new fusing drive gear when replacing the
fusing drive gear [A].
