Ricoh Aficio MP C3501

Fusing
D086/D087 4-108 SM

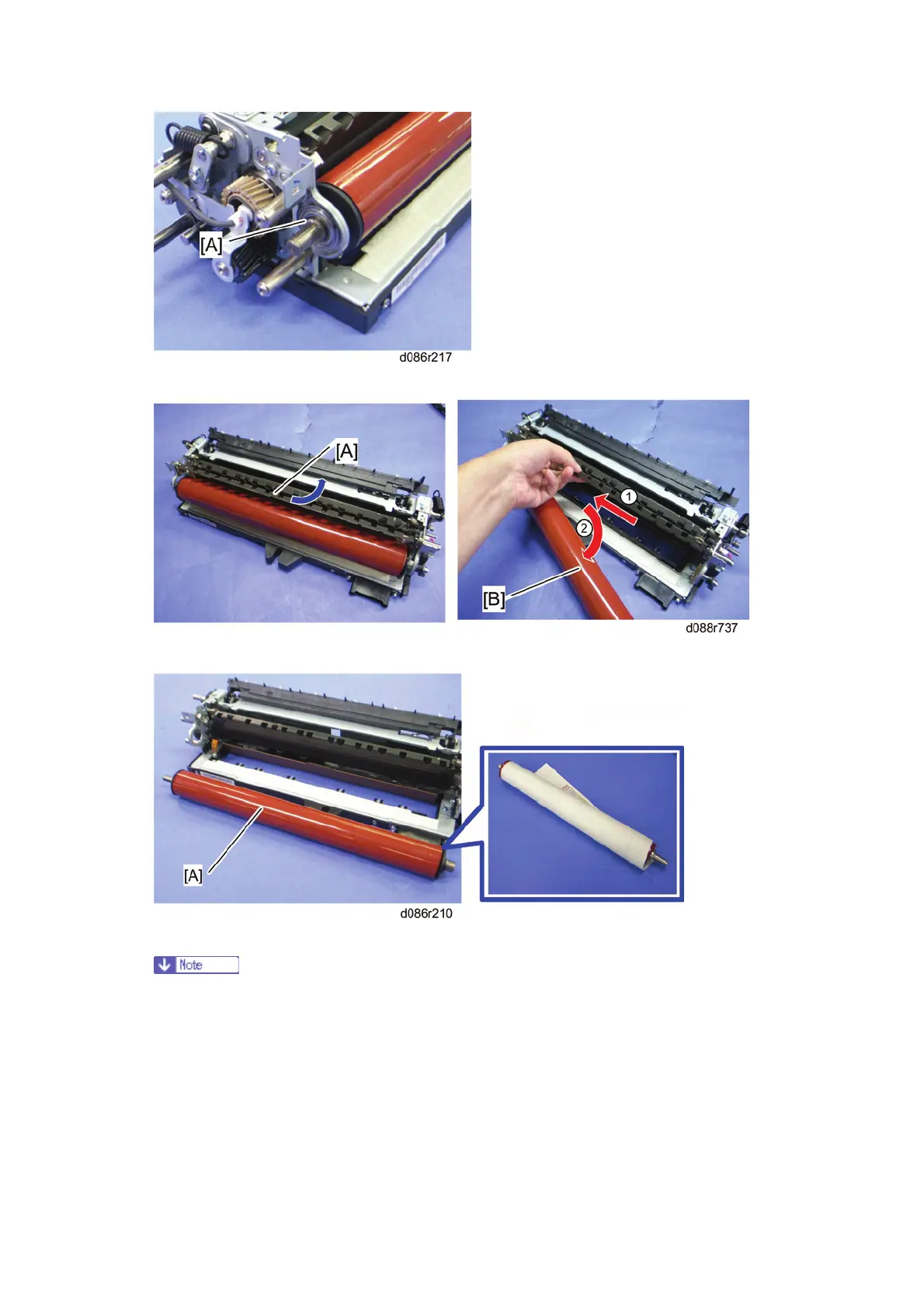

14. Heating roller bearing [A] at the rear side
15. Keep the heating roller stripper plate [A] open, and then remove the heating roller [B].
16. Heating roller [A]
 The surface of the heating roller is fragile, so the heating roller must be covered
with a sheet of paper when it is placed on a table or floor.
