Ricoh Aficio MP C3501 Service Manual

Installation Requirements
SM 2-1 D086/D087
Installation
2. INSTALLATION
2.1 INSTALLATION REQUIREMENTS
2.1.1 ENVIRONMENT

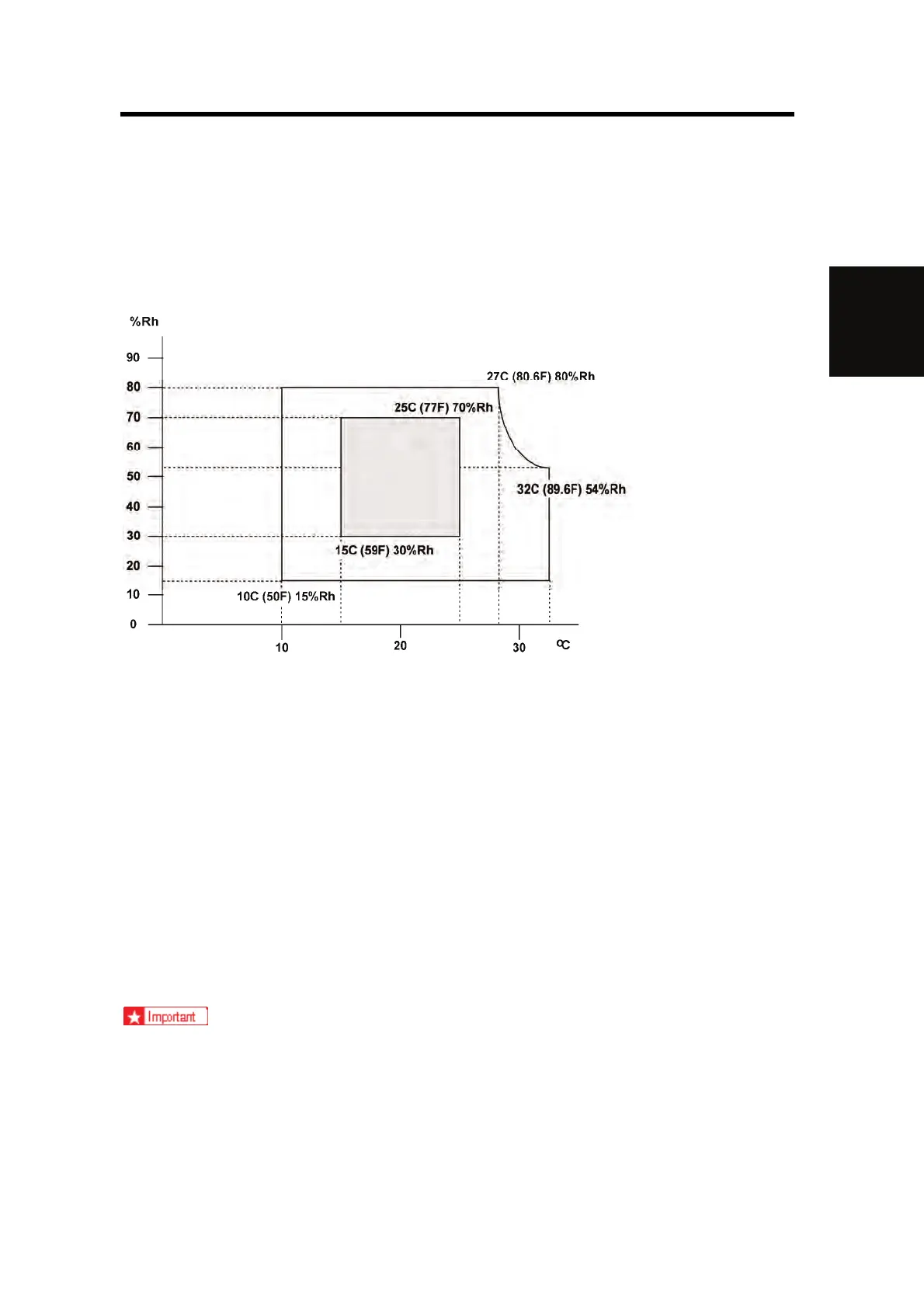

1. Temperature Range: 10°C to 32°C (50°F to 89.6°F)
2. Humidity Range: 15% to 80% RH
3. Ambient Illumination: Less than 1500 lux (do not expose to direct sunlight)
4. Ventilation: 3 times/hr/person or more
5. Do not let the machine get exposed to the following:
1) Cool air from an air conditioner
2) Heat from a heater
6. Do not install the machine in areas that are exposed to corrosive gas.
7. Install the machine at locations lower than 2,000 m (6,560 ft.) above sea level.
8. Install the machine on a strong, level base. (Inclination on any side must be no more than
5 mm.)
9. Do not install the machine in areas that get strong vibrations.
 Do not leave the toner bottle in a place directly exposed to sunlight.
 The toner bottle must be kept at a temperature of 35°C (95°F) or less. Be careful not
to leave the toner bottle in a hot place when transporting or storing it.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
