Internal Shift Tray SH3040 (D388)
SM 2-53 D086/D087
Installation
2.13 INTERNAL SHIFT TRAY SH3040 (D388)

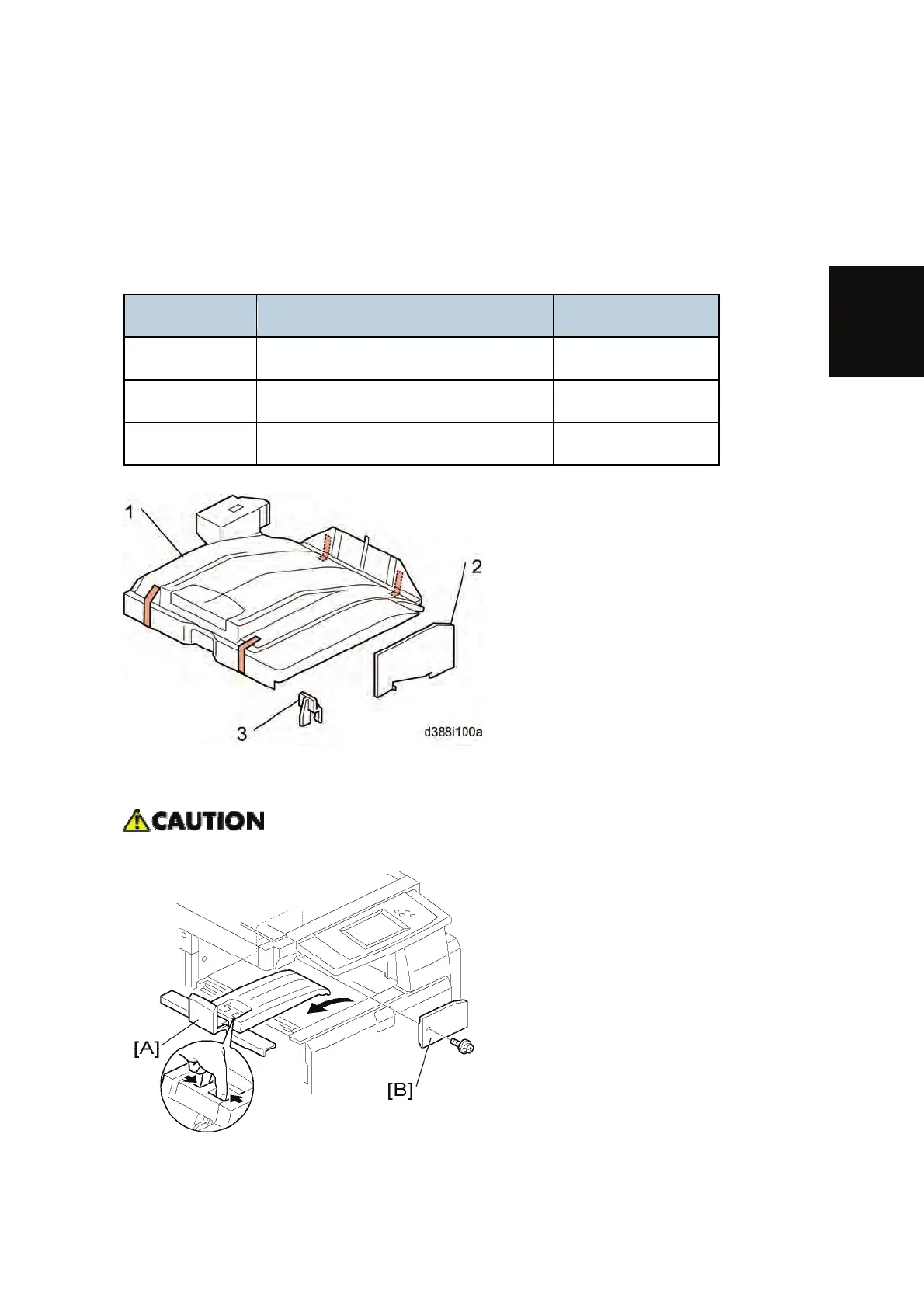

2.13.1 COMPONENT CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 Shift Tray Unit 1
2 Paper Guide - Small 2
3 Connector Cover 1
2.13.2 INSTALLATION PROCEDURE
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. Remove the standard tray [A].
To Next Page
