Ricoh Aficio MP C3501 Service Manual

Image Adjustment
D086/D087 4-8 SM

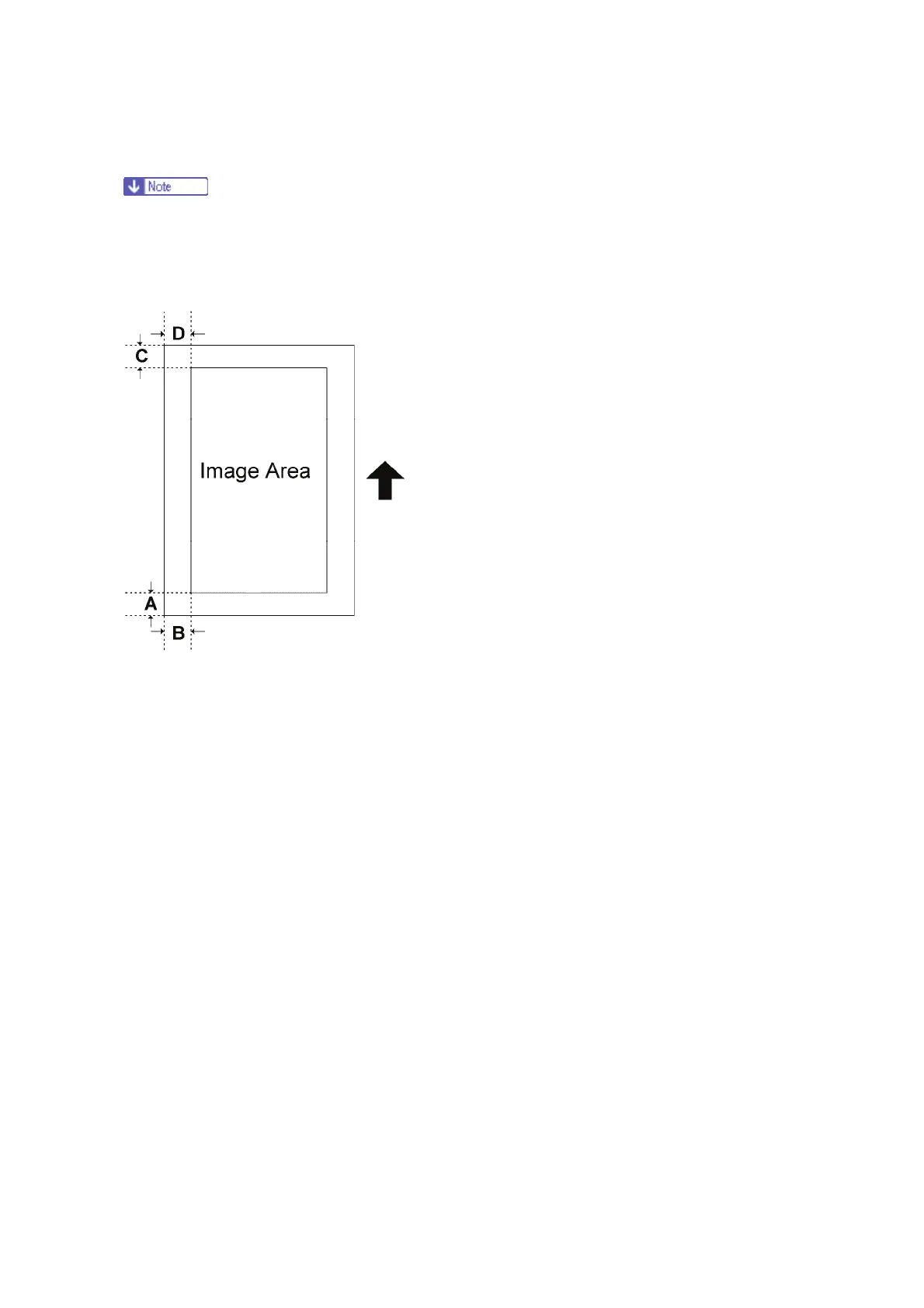

4.3.4 ERASE MARGIN ADJUSTMENT
 Adjust the erase margin C and D only if the registration (main scan and sub scan)
cannot be adjusted within the standard values. Do the registration adjustment after
adjusting the erase margin C and D, and then adjust the erase margin A and B.
1. Enter SP2-109-003.
2. Print out the test pattern (14: 1-dot trimming pattern) with SP2-109-003.
3. Check the erase margin A and B. Adjust them with SP2-103-001 to -015 if necessary.
 Leading edge: 0.0 to 9.0 mm (default: 4.2 mm)
 Side-to-side: 0.0 to 9.0 mm (default: 2.0 mm)
 Trailing edge: 0.0 to 9.0 mm (default: 4.2 mm)

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
