Ricoh Aficio MP C3501 Service Manual

Fusing
D086/D087 4-128 SM

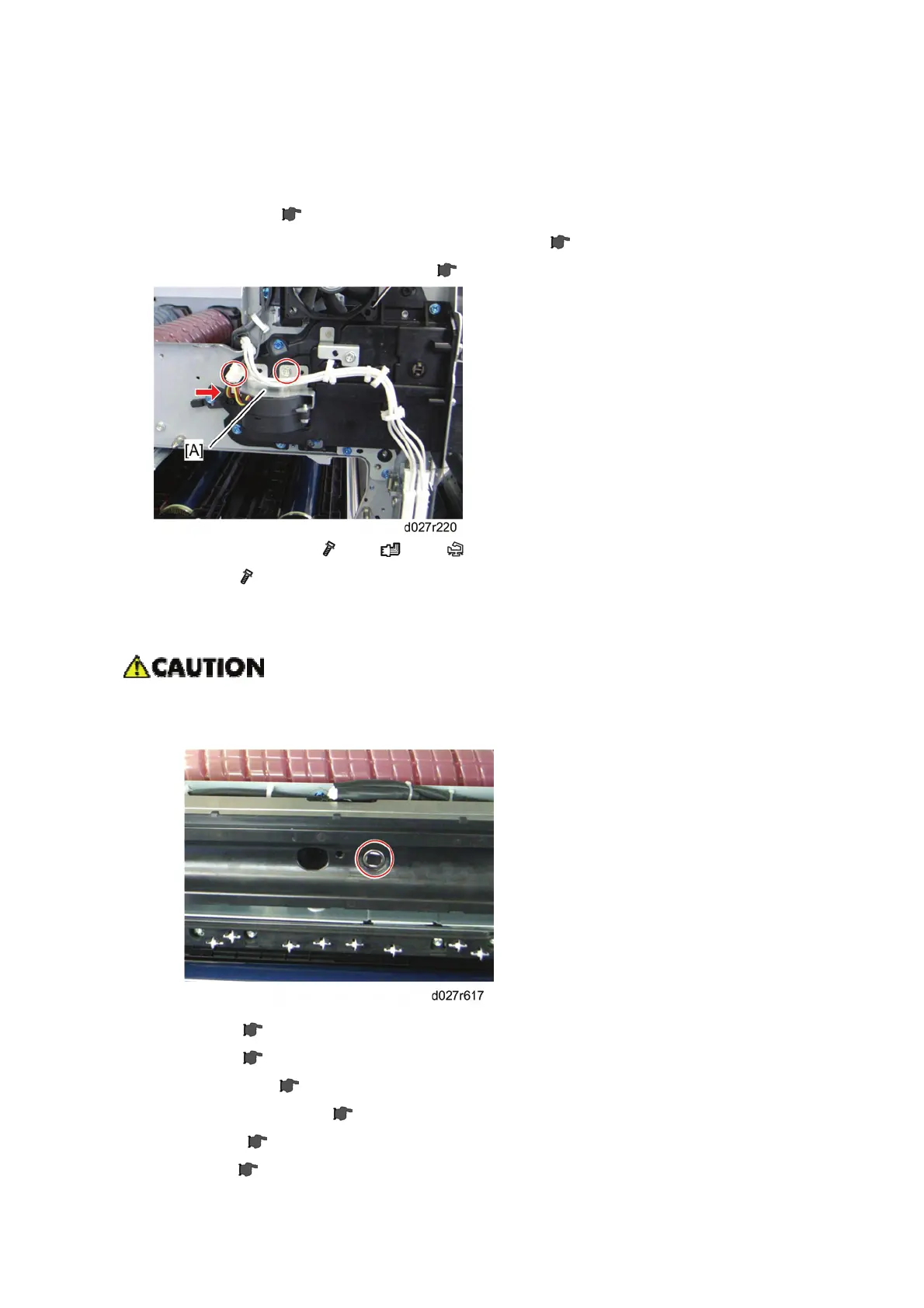

4.11.18 IH COIL FAN
1. Open the right door.
2. Front right cover (
p.4-20 "Operation Panel")
3. Pull out trays 1 and 2, and the image transfer belt unit (
p.4-123)
4. Right front cover and front inner cover (
p.4-123)
5. IH coil fan bracket [A] (
x 1, x 1, x 1)
6. IH coil fan (
x 2)
4.11.19 IH COIL UNIT
 Do not push the thermostats on the IH coil unit. If you do, the thermostats will be
opened. In that case, the IH coil unit must be replaced.
1. Fusing unit (
p.4-99)
2. Rear cover (
p.4-19)
3. Right rear cover (
p.4-19)
4. Open the controller box (
p.4-153 "Controller Box").
5. Fusing duct (
p.4-120)
6. IH inverter (
p.4-161)

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
