Electrical Components
SM 4-167 D086/D087
Replacement
and
Adjustment
4.14.15 HDD
1. Controller unit ( p.4-151)

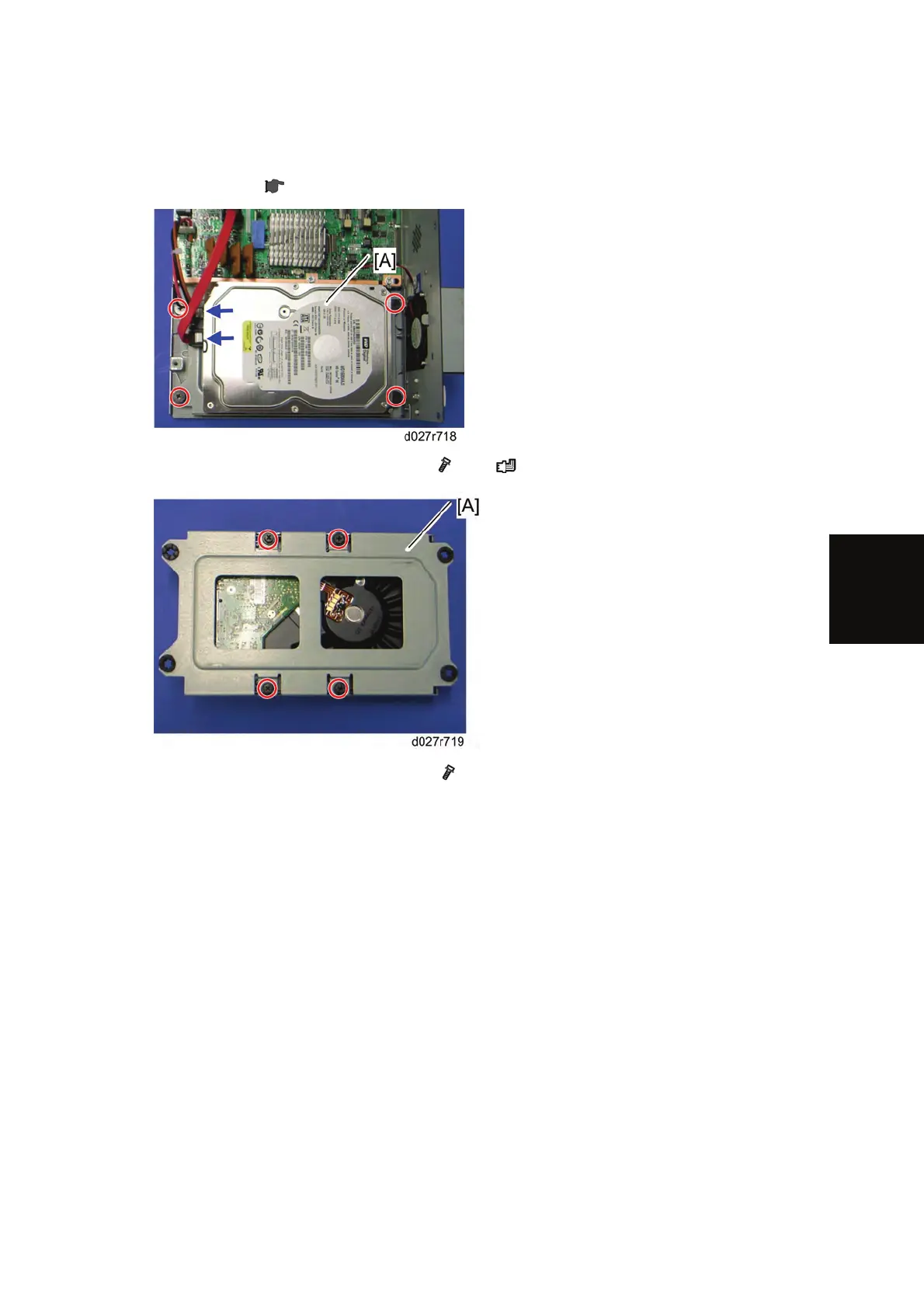

2. Remove the HDD [A] with the bracket (
x 4, x 2).
3. Remove the HDD from the bracket [A] (
x 4).
When installing a new HDD unit
1. Turn the main power switch on. The disk is automatically formatted.
2. Install the stamp data using "SP5853".
3. Switch the machine off and on to enable the fixed stamps for use.
