Ricoh Aficio MP C3501

Key Counter Bracket Type H (A674)
SM 2-81 D086/D087
Installation

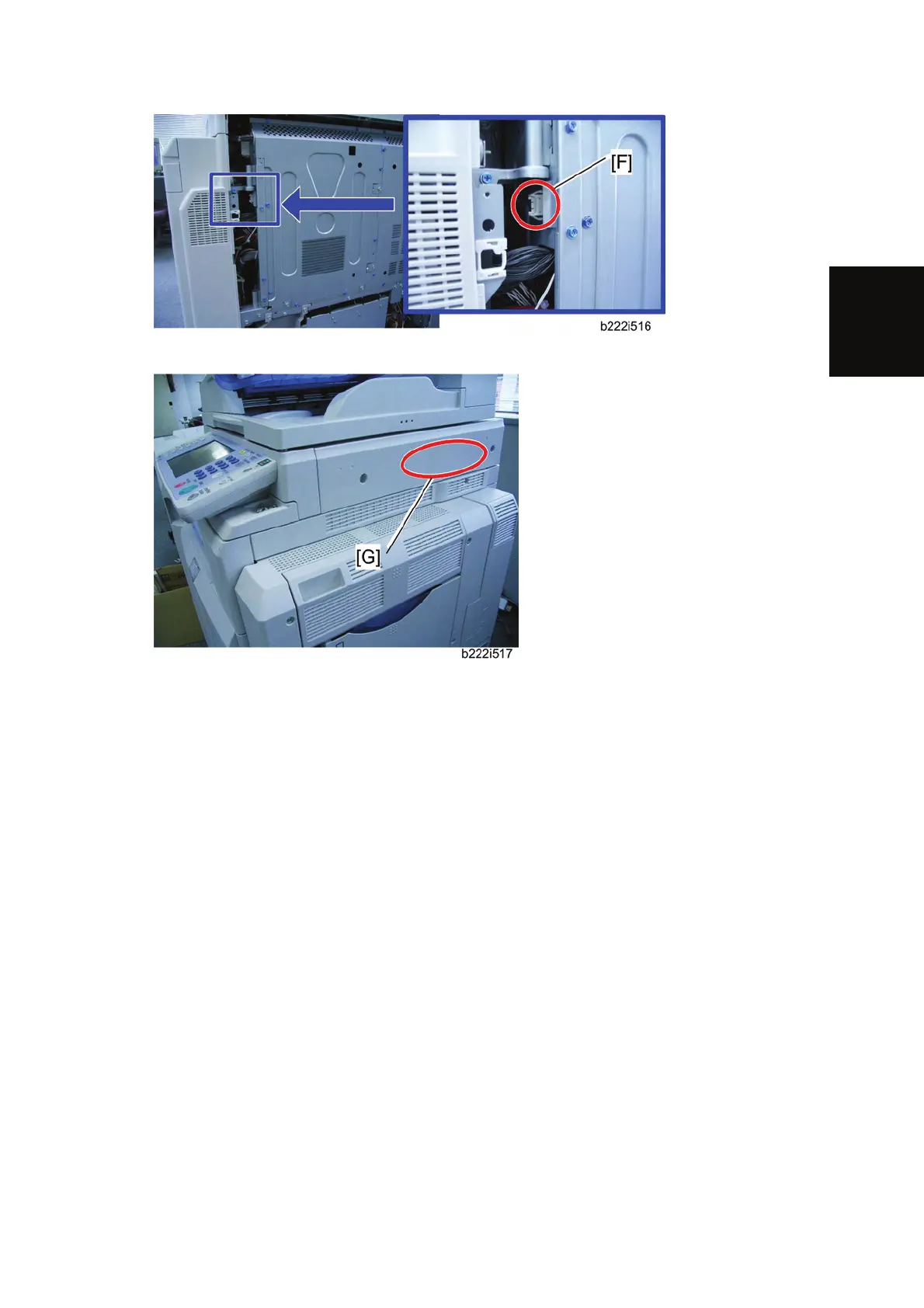

6. Connect the harness to the connector [F] inside the machine.
7. Peel off double sided tape on the key counter bracket and attach the key counter to the
scanner right cover [G].
8. Reassemble the machine.
