Side Tray Type C5501 (D542)
D086/D087 2-58 SM

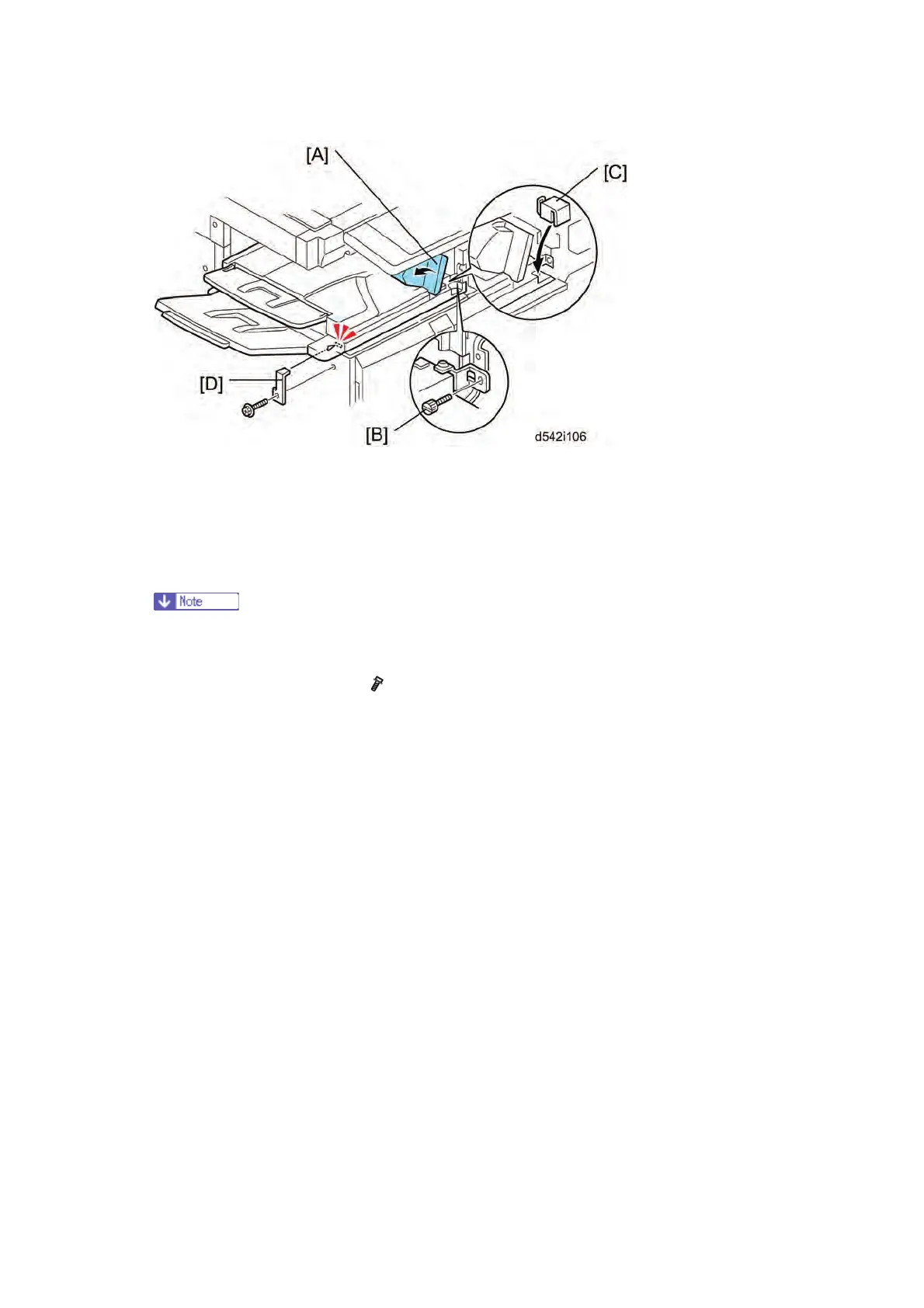

9. Open the side tray cover [A].
10. Secure the side tray unit with the knob screw [B].
11. Attach the frame cover [C].
12. Reinstall the front right cover to the machine, and then close the right door of the
machine.
Open the side tray cover [A] when installing the front right cover. Otherwise, you
cannot reinstall it.
13. Install the holder bracket [D] (
x 1)
14. Turn on the main power switch of the machine.
15. Check the side tray operation.
