Ricoh Aficio MP C3501 Service Manual

SR790 (B408)
D086/D087 2-68 SM

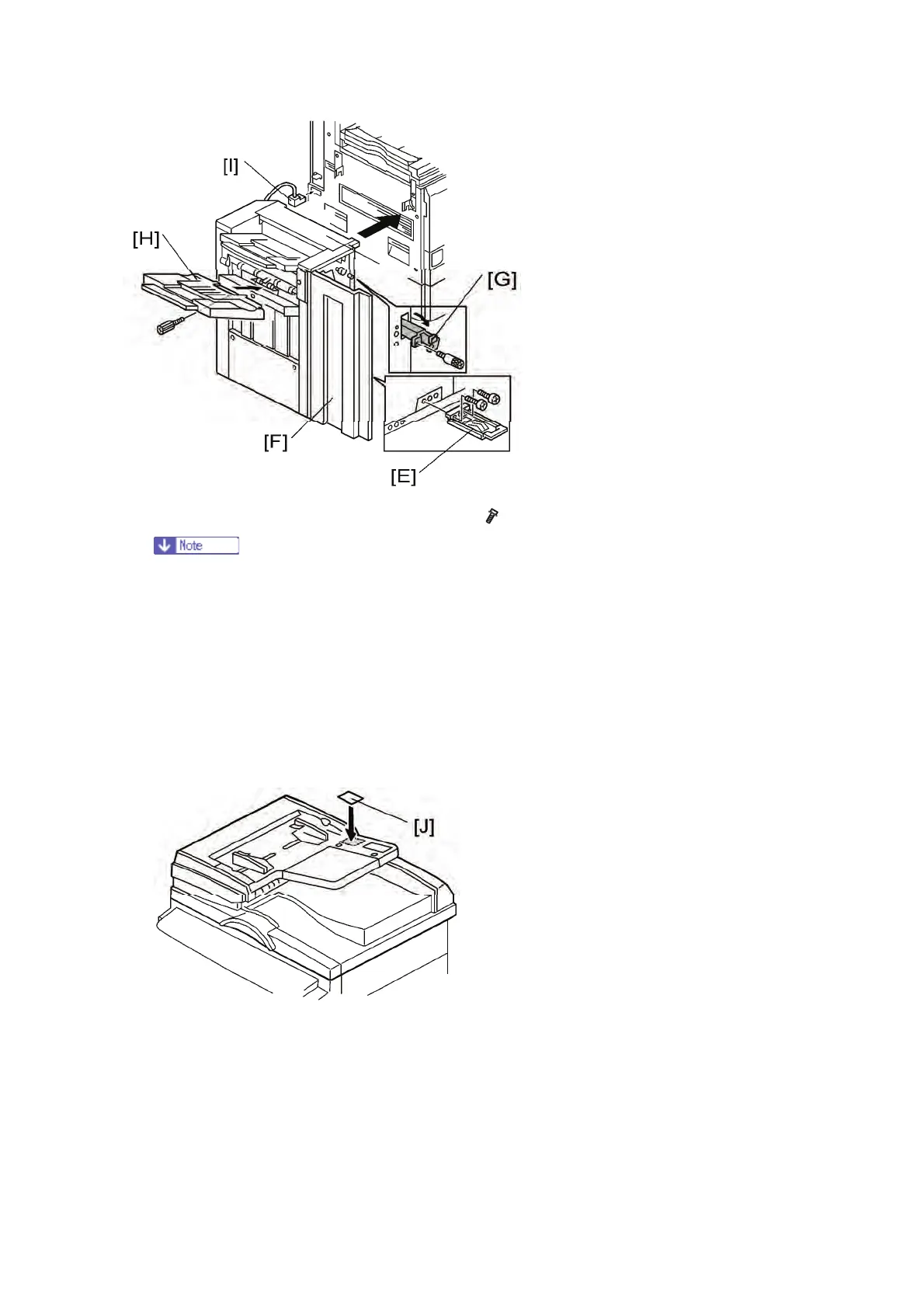

1. Install the grounding plate [E] on the finisher (
x 2 - M3 x 8).
 Use the screw removed in step 1 and the screw from the accessory box.
2. Open the front door [F] of the finisher, and then pull the locking lever [G] (1 knob screw -
M3 x 8).
3. Align the finisher on the joint brackets, and lock it in place by pushing the locking lever.
4. Secure the locking lever (1 knob screw - M3 x 8).
5. Close the front door.
6. Install the copy tray [H] (1 knob screw - M4 x 10).
7. Connect the finisher cable [I] to the main machine below the right rear handle.
8. Attach the staple position decal [J] to the ARDF as shown.
9. Turn on the main power switch and check the finisher operation.
