Ricoh Aficio MP C3501

Fax Unit (D393)
SM 5 D393
Fax Option
Type C5000
(D393)

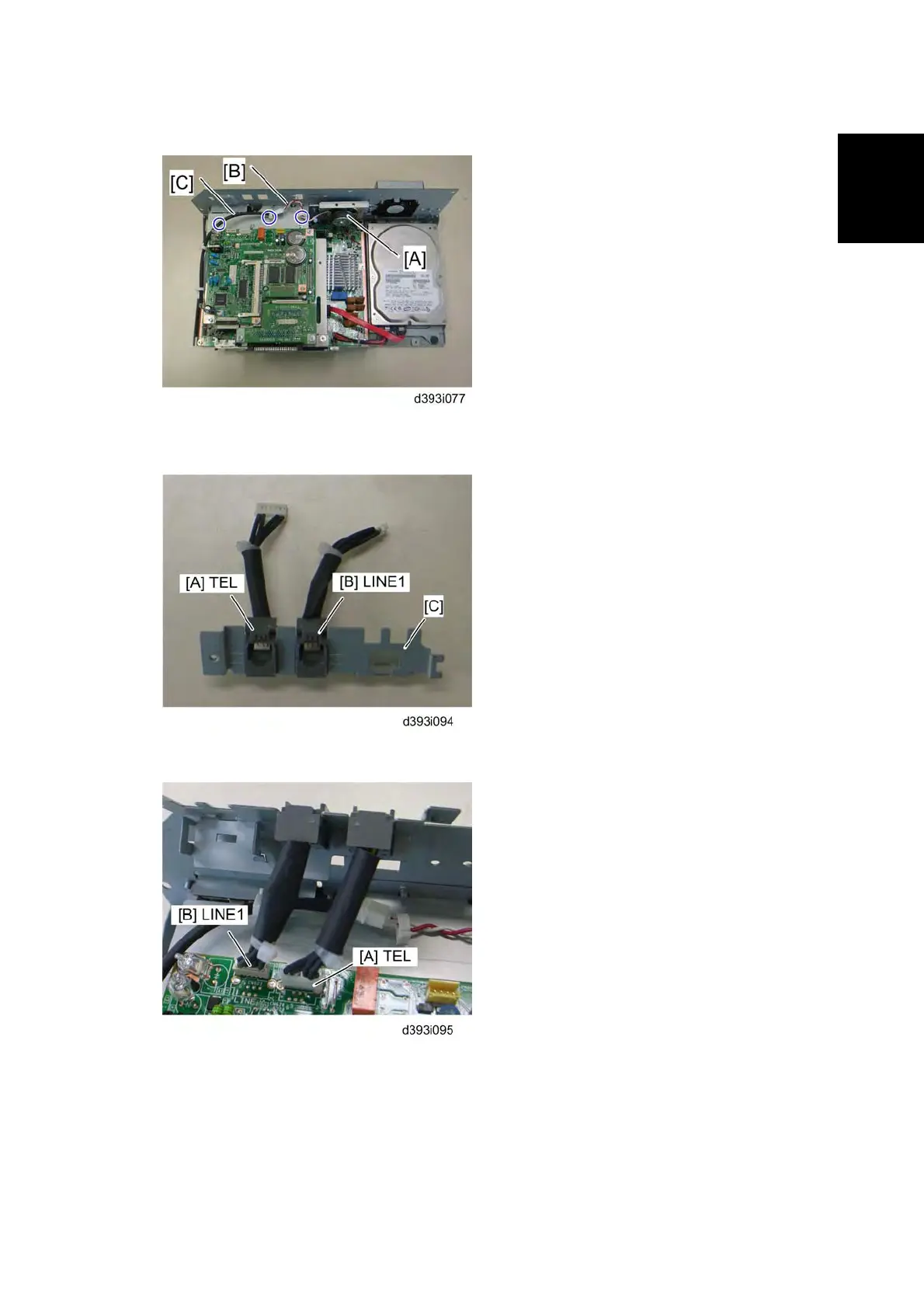

7. Install the speaker [A] to the controller box (x 2) and connect the speaker cable [B]
with the speaker relay cable [C] (= x 3).
8. Connect the two modular harnesses [A] [B] to the modular bracket [C].
9. Connect the two modular harnesses [A] [B] to the FCU.
