Ricoh Aficio MP C3501

G3 Interface Unit (D393)
SM 17 D393
Fax Option
Type C5000
(D393)

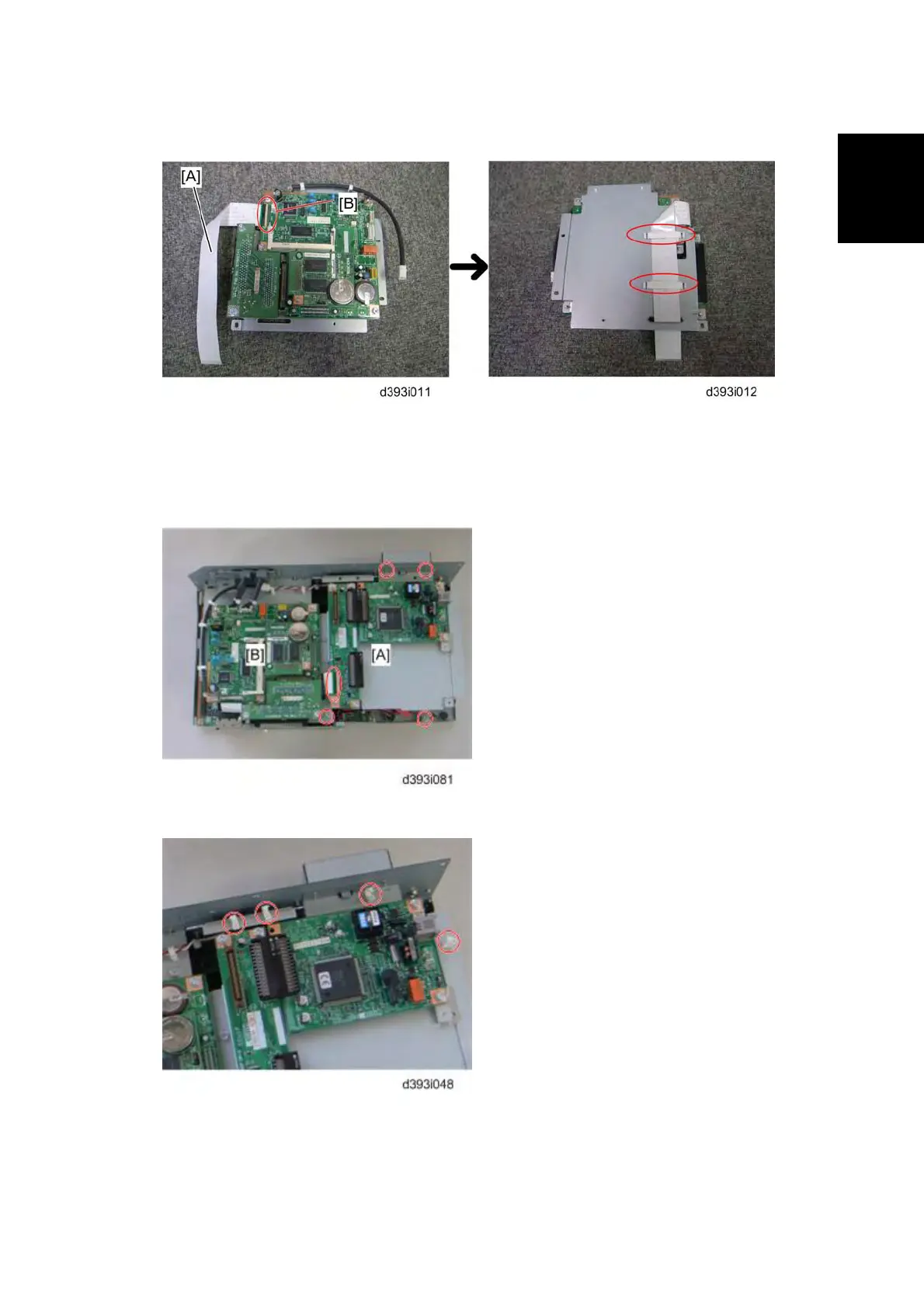

2. Attach one end (short length) of the flat cable [A] to the connector [B] of the FCU
board.
3. Hold the flat cable with two clamps and pass the other end of the flat cable through the
cutout as shown above.
4. Connect the SG3 interface unit [A] to the controller board [B] with the flat cable ( x 4).
5. Attach four clamps to the brackets.
