Ricoh Aficio MP C3501

Electrical Components
SM 1 D536
1 Bin Tray
BN3080
D536
1. REPLACEMENT AND ADJUSTMENT
1.1 ELECTRICAL COMPONENTS
1.1.1 PAPER SENSOR

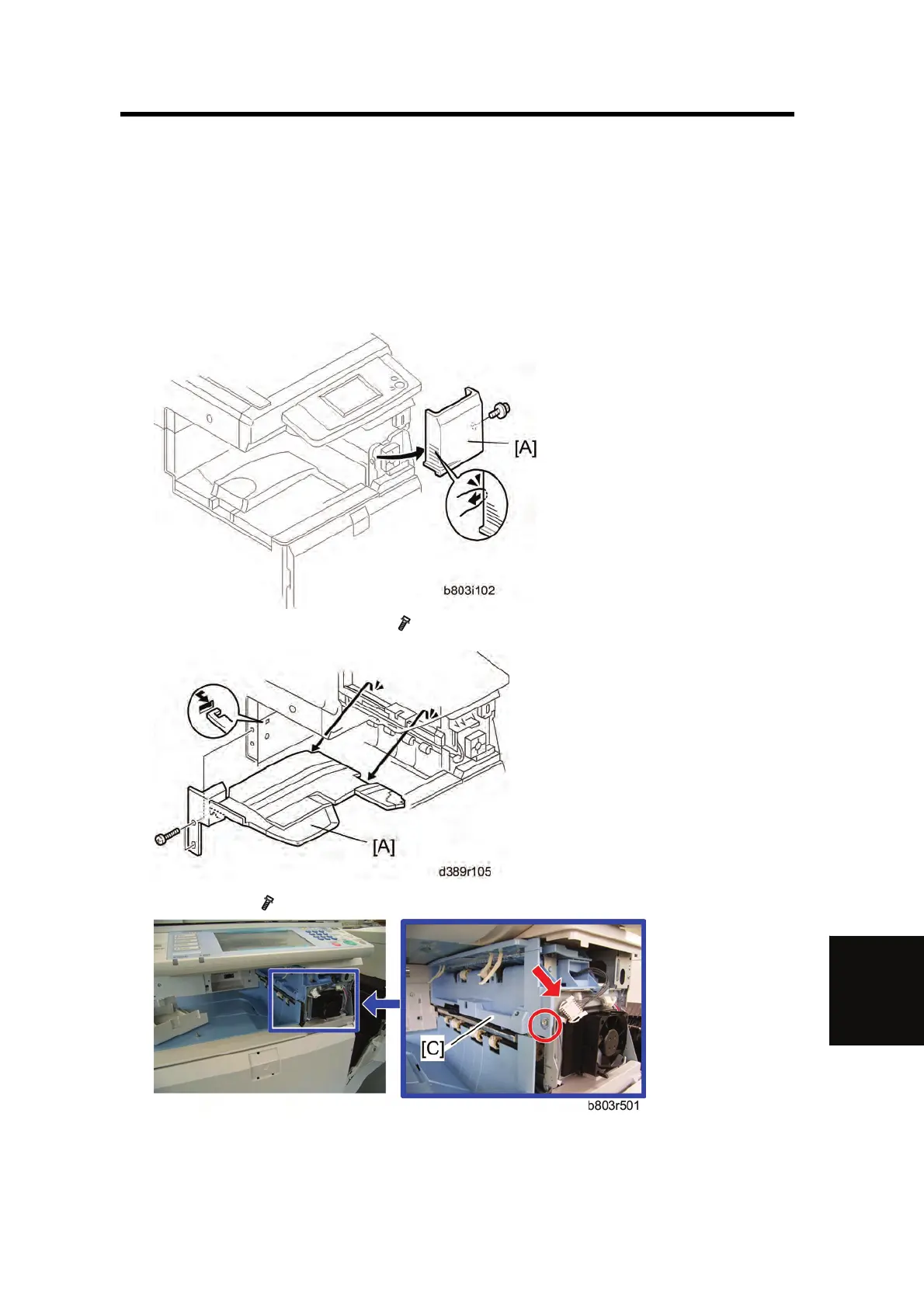

1. Open the right door of the machine.
2. Remove the front right cover [A] ( x 1).
3. 1-bin-tray [B] (
x 2; M3 x 16)
4. 1-bin sorter unit [C]
