Ricoh Aficio MP C3501 Service Manual

Image Creation
SM 4-53 D086/D087
Replacement
and
Adjustment

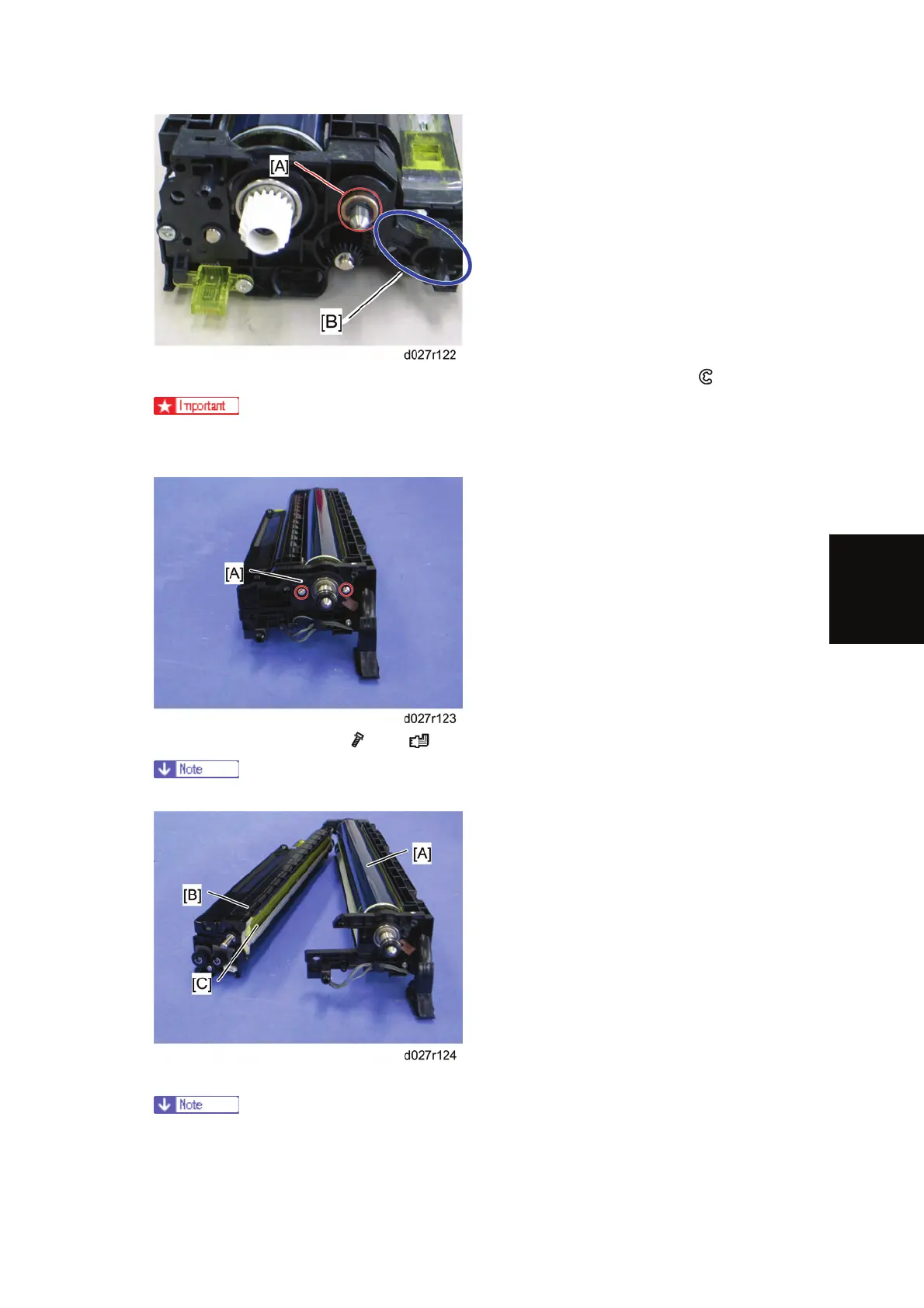

5. Remove the bushing [A] of the development roller at the rear of the PCDU (
x 1).
 Do not put too much weight on the PCDU. Otherwise, the plastic frame [B] of the
development unit may be damaged.
6. Remove the front joint [A] ( x 2, x 1).
 The front joint [A] is firmly set. Remove it with a flat screwdriver.
7. Drum unit [A] and Development Unit [B]
 When the development unit is removed from the drum unit, clean the entrance
mylar [C] with a vacuum.
