Image Creation
D086/D087 4-60 SM

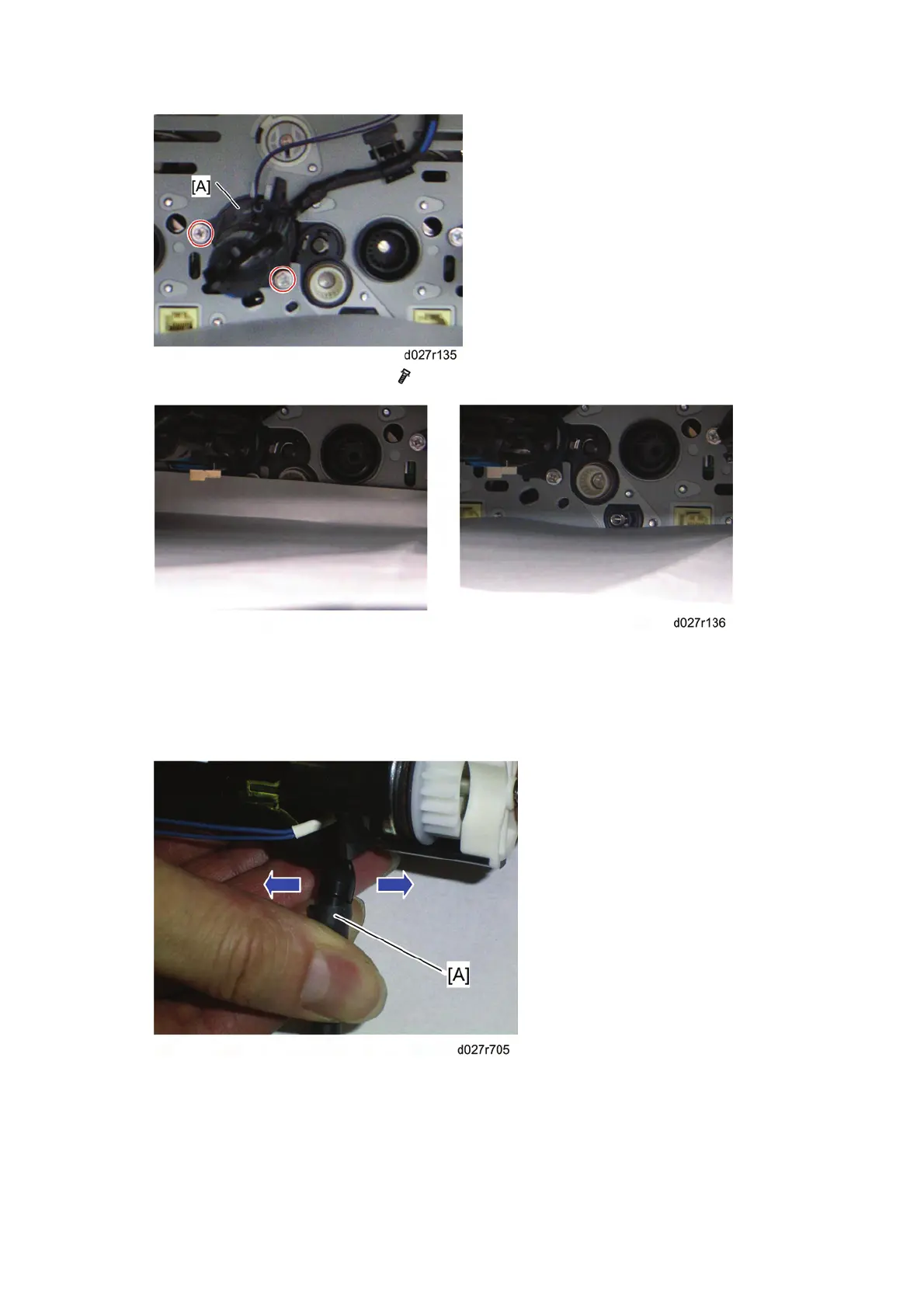

7. Remove the toner pump unit [A] (
x 2)
Make sure that a sheet of paper is attached to the frame of the rear side. The picture
on the left shows a sheet of paper that is correctly set, but the picture on the right
shows a sheet of paper that is not correctly set. This sheet of paper prevents toner
and screws from falling into the laser optics housing unit through cutouts.
8. Slowly remove the toner supply tube [A] from the toner pump unit by pulling the tube right
and left.
9. Turn up the openings of the toner pump unit and toner supply tube just after removing the
tube.
