Ricoh Aficio MP C3501

Paper Feed
D086/D087 4-144 SM

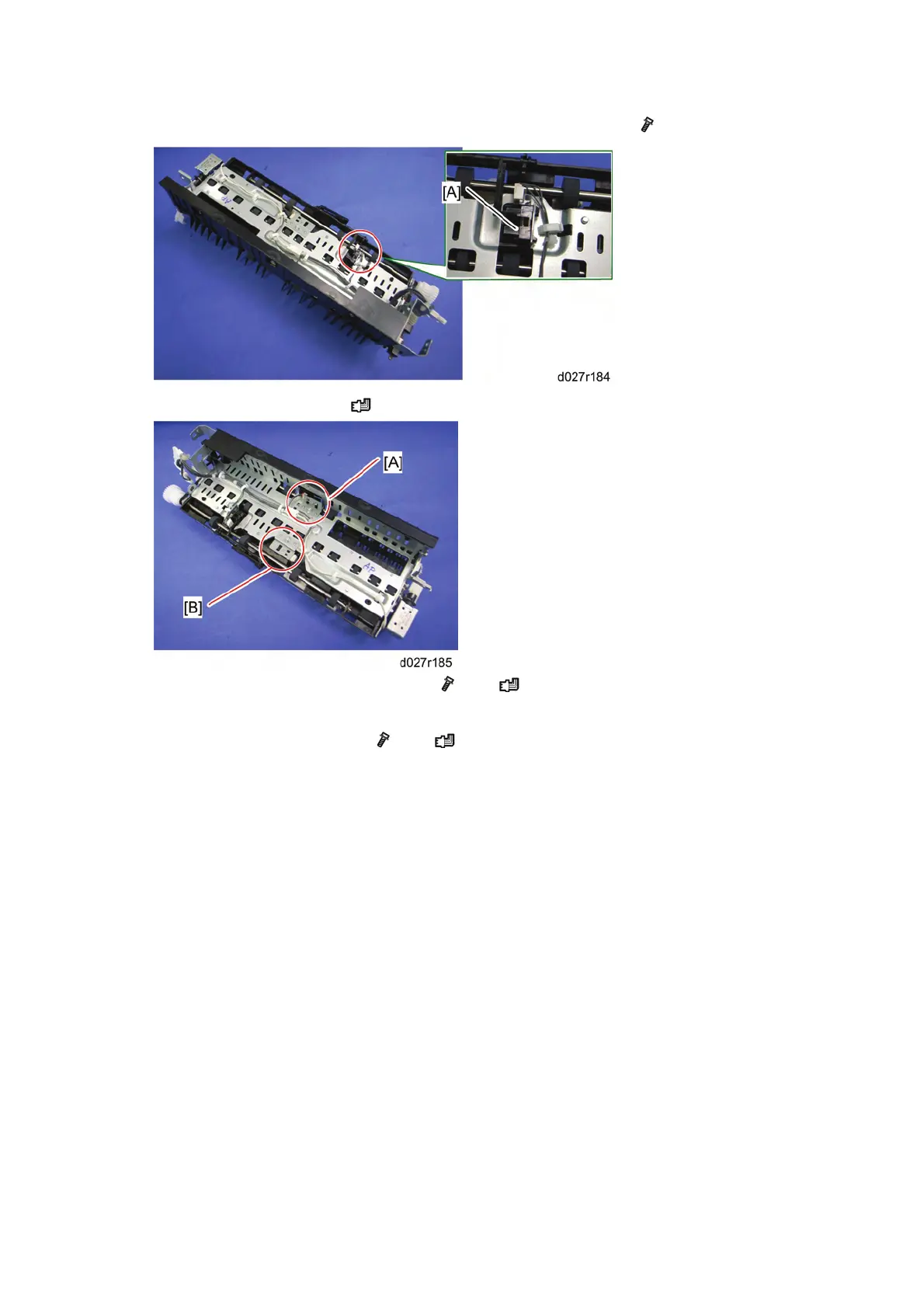

3. Remove the fusing exit sensor from the fusing exit sensor bracket ( x 1)
4. Paper overflow sensor [A] (
x 1, hook)
5. Junction paper jam sensor bracket [A] ( x 1, x 1)
6. Remove the junction paper jam sensor from the junction paper jam sensor bracket (hook)
7. Paper exit sensor bracket [B] (
x 1, x 1)
8. Remove the paper exit sensor from the paper exit sensor bracket (hook)
