Ricoh Aficio MP C3501

Duplex Unit
SM 4-149 D086/D087
Replacement
and
Adjustment
Paper Transfer Unit")
2. Open the right door.

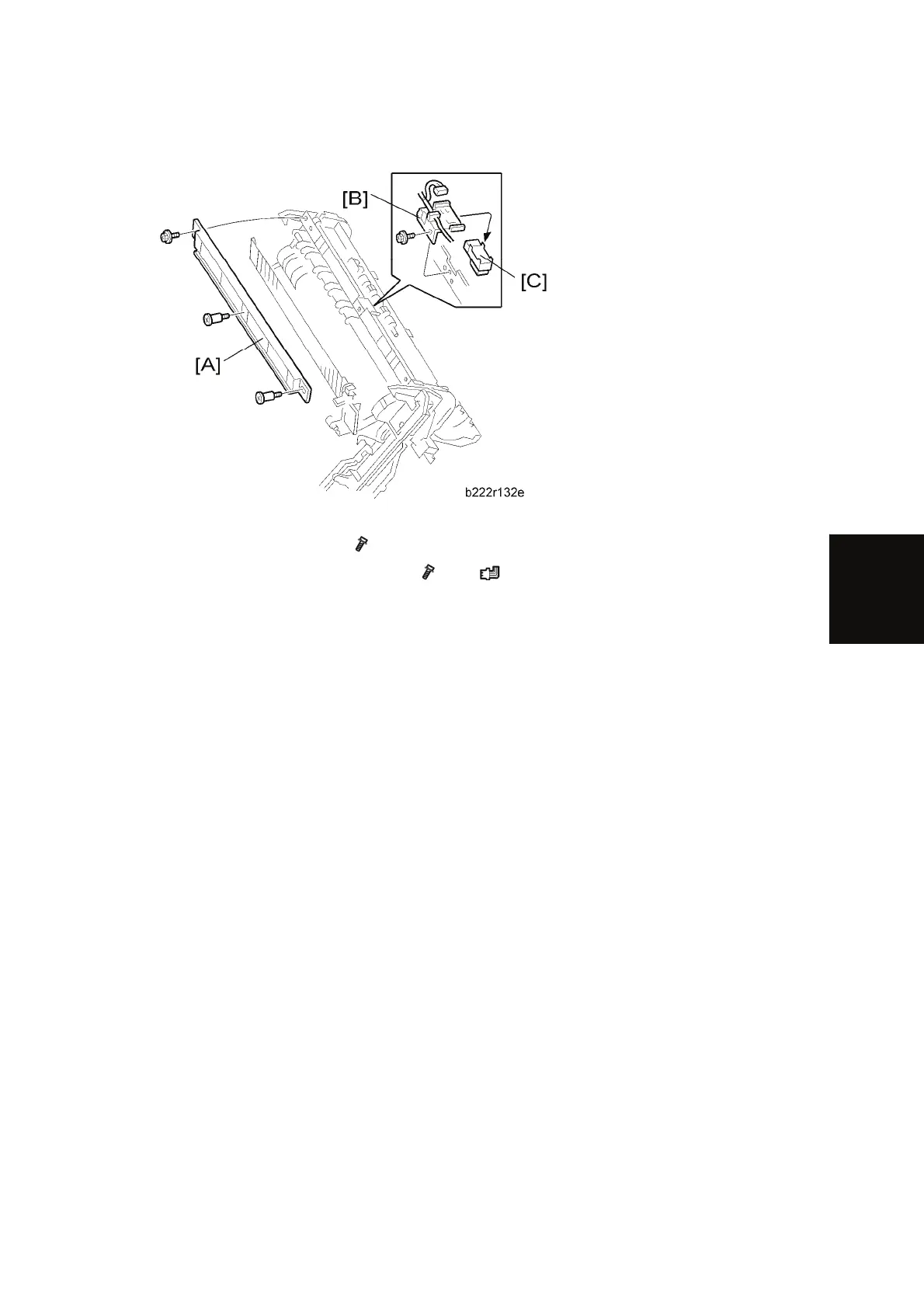

3. Duplex entrance guide [A] (
x1, stepped screw x 2)
4. Duplex entrance sensor bracket [B] (
x 1, x 1)
5. Duplex entrance sensor [C] (hook)
