Paper Feed Unit PB3080 (D387)
D086/D087 2-24 SM
3. Grasp the handle [A] and grips [B] of the machine.
4. Lift the copier and install it on the paper feed unit [C].
Hold the handle and grips of the machine when you lift and move the machine.

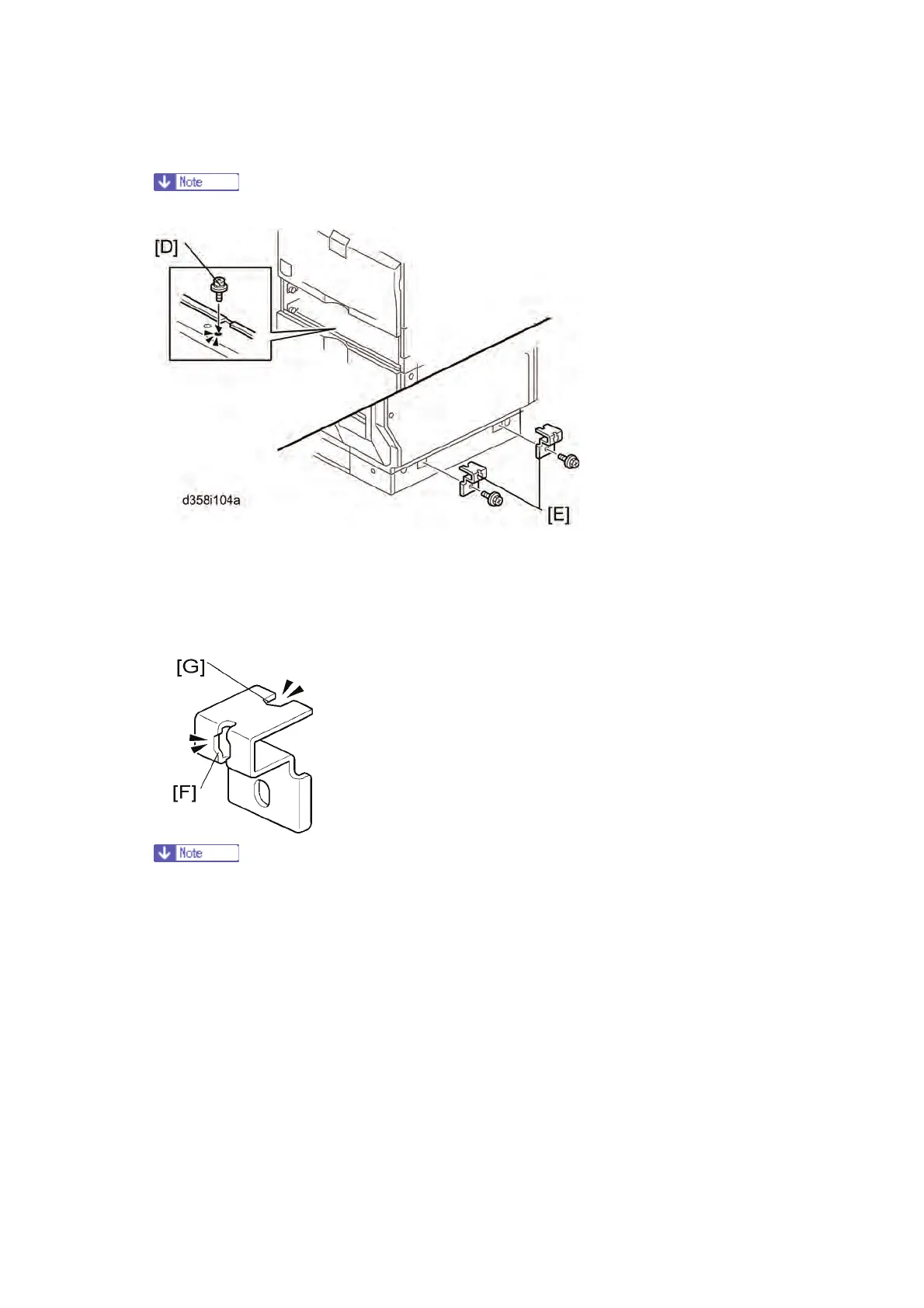

5. Remove tray 1 and 2 of the machine.
6. Fasten the spring washer screw [D].
7. Reinstall all trays.
8. Attach the securing brackets [E] (M4x10; x 1 each).
One of the securing brackets is used as a securing tool (the cutout [F] is used in
step 6). But the cutout [G] is for attaching the tray heater. Therefore, attach the
securing brackets [E] after installing the tray heater if you install the tray heater.
9. Load paper into the paper feed unit.
10. Turn on the main power switch of the machine.
11. Check the paper feed unit operation and copy quality.
