Ricoh Aficio MP C3501

ARDF DF3050 (D541)
SM 2-41 D086/D087
Installation

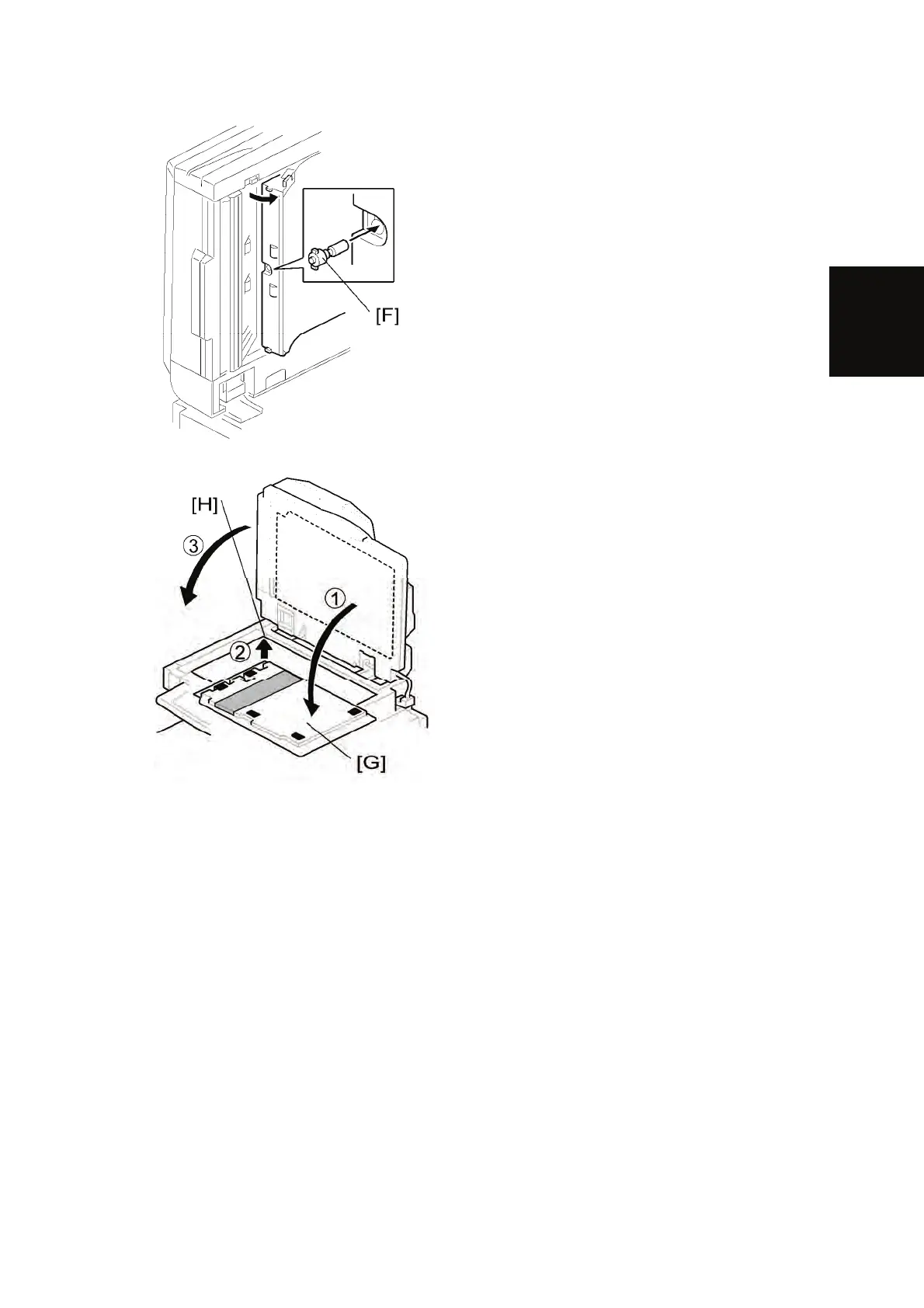

7. Install the stamp cartridge [F] in the ARDF.
8. Peel off the platen sheet [G] and place it on the exposure glass.
9. Align the rear left corner of the platen sheet with the corner [H] on the exposure glass.
10. Close the ARDF.
11. Open the ARDF and check that the platen sheet is correctly attached.
