Ricoh Aficio MP C3501 Service Manual

1 Bin Tray BN3080 (D536)
SM 2-51 D086/D087
Installation
2.12.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.
If the bridge unit (D386) or side tray (D542) has already been installed in the machine,
remove it before installing 1 bin tray unit (D536). This will make it easier for you to do the
following procedure.
1. Remove all tapes.
2. Open the right door of the machine.

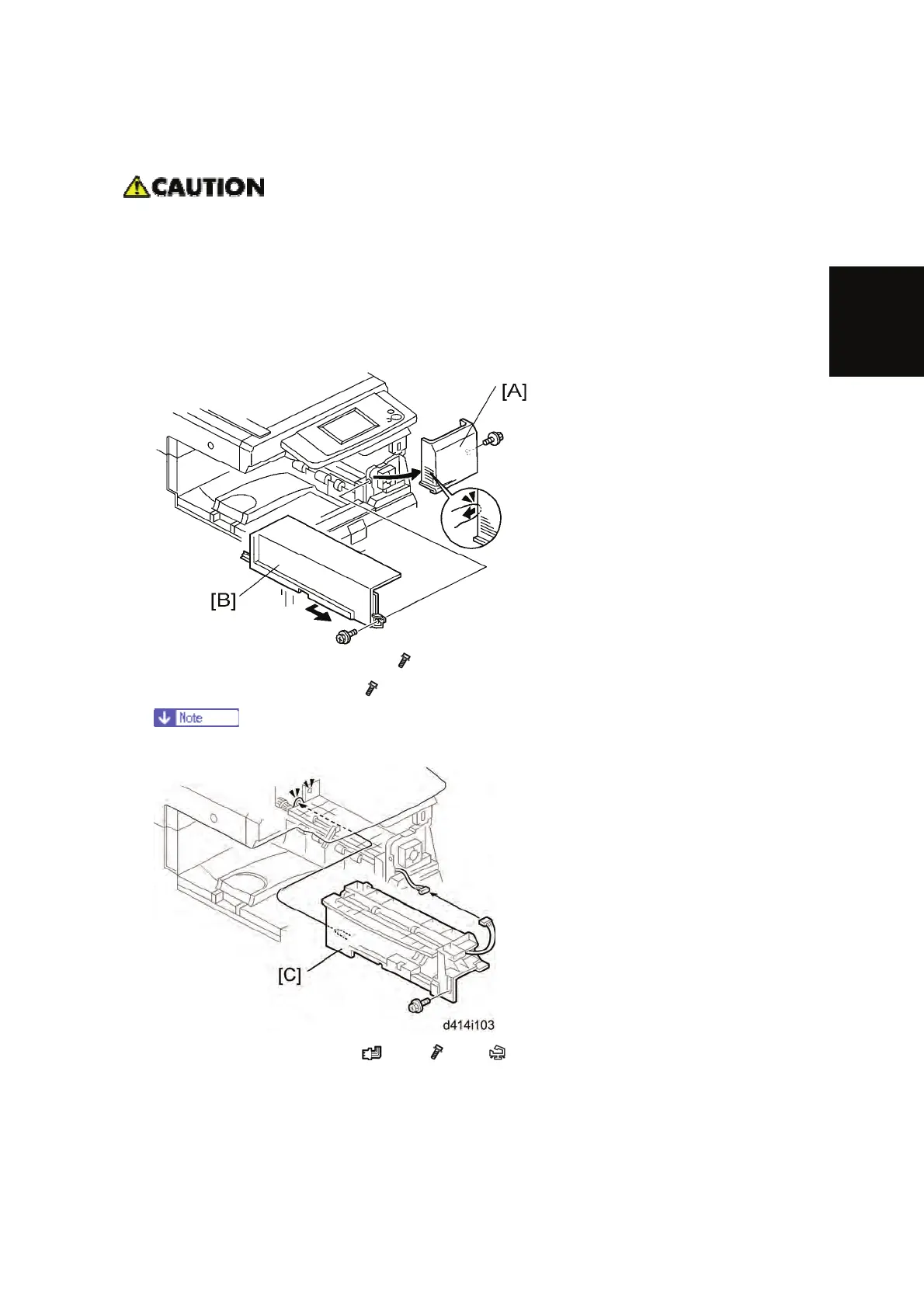

3. Remove the front right cover [A] ( x 1).
4. Remove the inner cover [B] (
x 1).
 Keep this screw for step 5.
5. Install the 1 bin tray unit [C] (
x 1, x 1, x 1 [This screw was removed in step
4]).
