Interface between Trellis Coded Symbols and Bytes 3.3.7.3.4
As the size of trellis coded symbol can vary from 8 to 11 bits, there must be a definition of the
arrangement that gives the bytes (8 bits fixed) for the R-S concatenated part.
The convention is the following, depicted for 4D-8PSK-TCM 2.5 with the arrangement of the 10 bits
with regard to the 8 input bits is described on next figure.

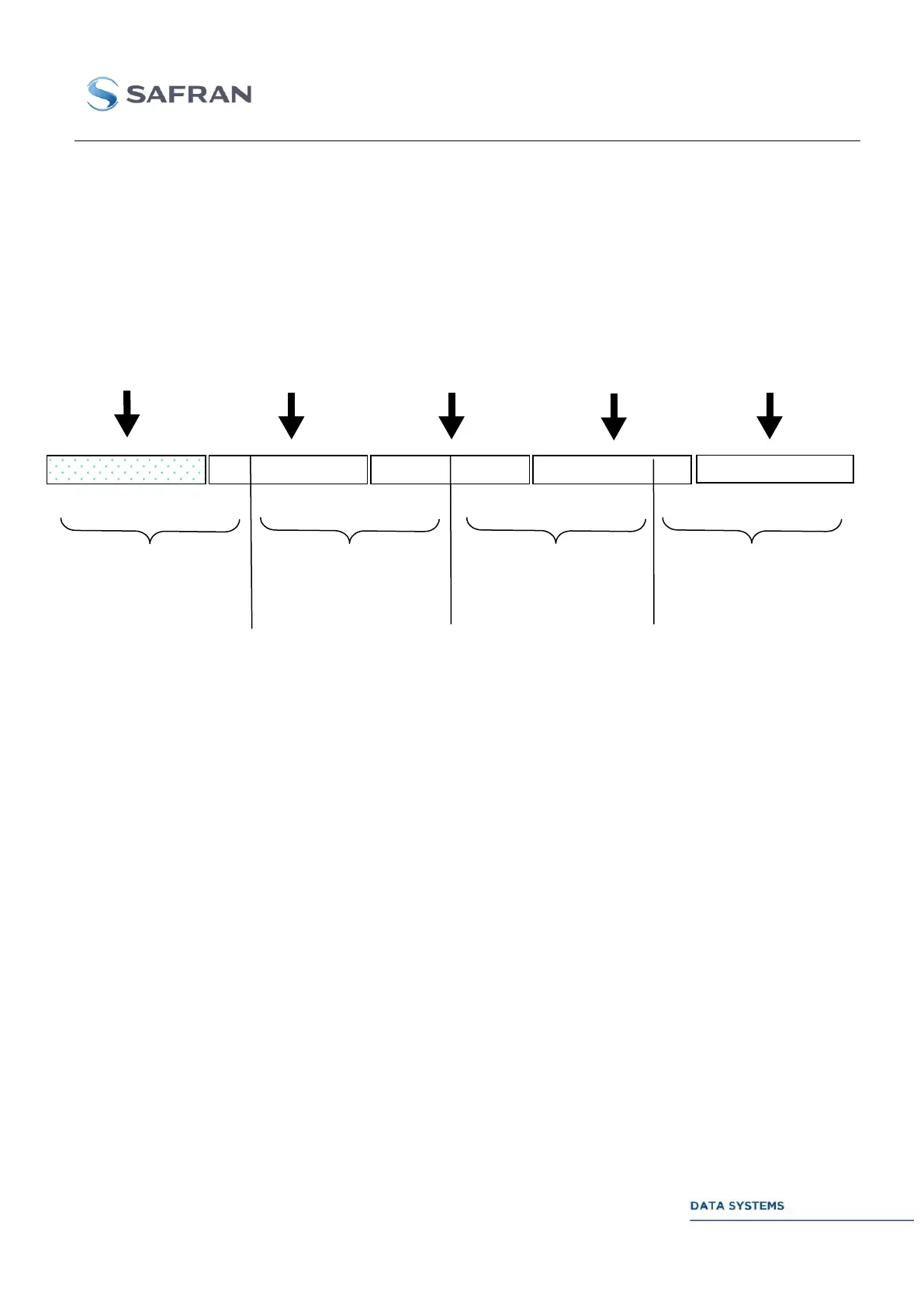

Figure 32: Data Arrangement in TCM 2.5 bits/channel_symbol
w10 w9 w8 w7 w6 w5 w4 w3 w2
w1
A
B
C
D
E
Byte 5
Byte 4
Byte 3
Byte 2
Byte 1
D7 D6 D5 D4 D3 D2 D1 D0
D7 D6 D5 D4 D3 D2 D1 D0
D7 D6 D5 D4 D3 D2 D1 D0
D7 D6 D5 D4 D3 D2 D1 D0
D7 D6 D5 D4 D3 D2 D1 D0
w10 w9 w8 w7 w6 w5 w4 w3 w2
w1
w10 w9 w8 w7 w6 w5 w4 w3 w2
w1
w10 w9 w8 w7 w6 w5 w4 w3 w2 w1
Decuplet 1 =
MTCM symbol 1
Notes: * Byte 1 is the first byte transmitted on the Air interface,
* The UW will be every time positioned on the byte 1.
Decuplet 2 =
MTCM symbol 2
Decuplet 3 =
MTCM symbol 3
Decuplet 4 =
MTCM symbol 4
