A status in the “Physical Layer” Window indicates which type of modulation is activated:
 SCCC
 SCCC-X
 DVB-S2
 DVB-S2X
 Standard (any other mode)

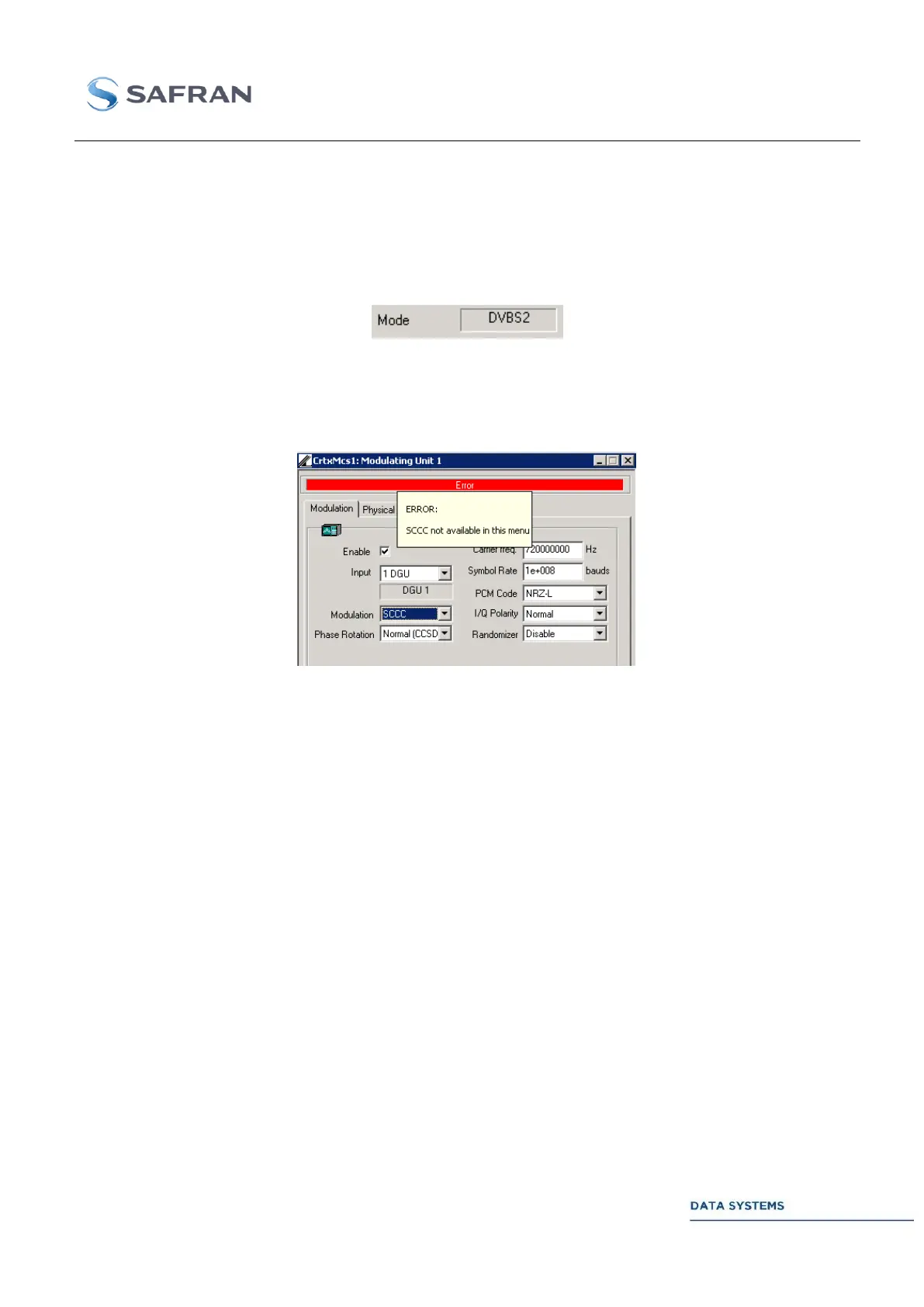

Figure 164: Modulation Type
The upper banner indicates the Warning status: OK (green display) or ERROR (red display).
When pointing at the banner, more information about the Warning is displayed.
Figure 165: Pointing at an error
