Here are some examples of possible configurations.

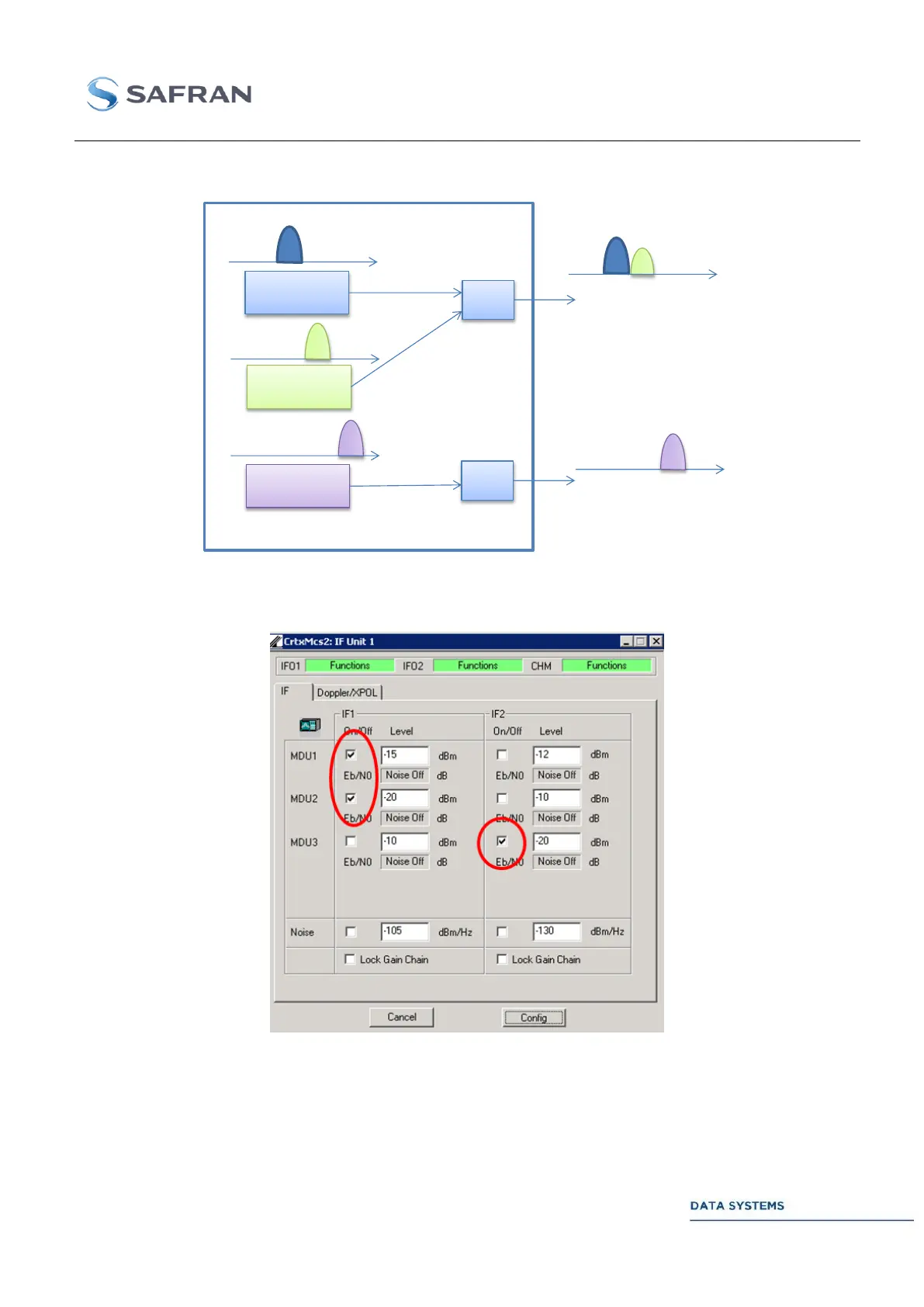

Figure 63: Example 1: 2 adjacent channels on IF1 – 1 single channel on IF2
Figure 64: Example 1: 2 adjacent channels on IF1 – 1 single channel on IF2 (GUI)
Modulator1
(8PSK)
Modulator2
(8PSK)
Modulator3
(8PSK)
-15 dBm
-20 dBm
-20 dBm
IF1
IF2
(Spectrum)
Spectrum on IF1
Spectrum on IF2
CORTEX HDR
