“External Framing” Window 4.5.8.1.3
General Selection 4.5.8.1.3.1

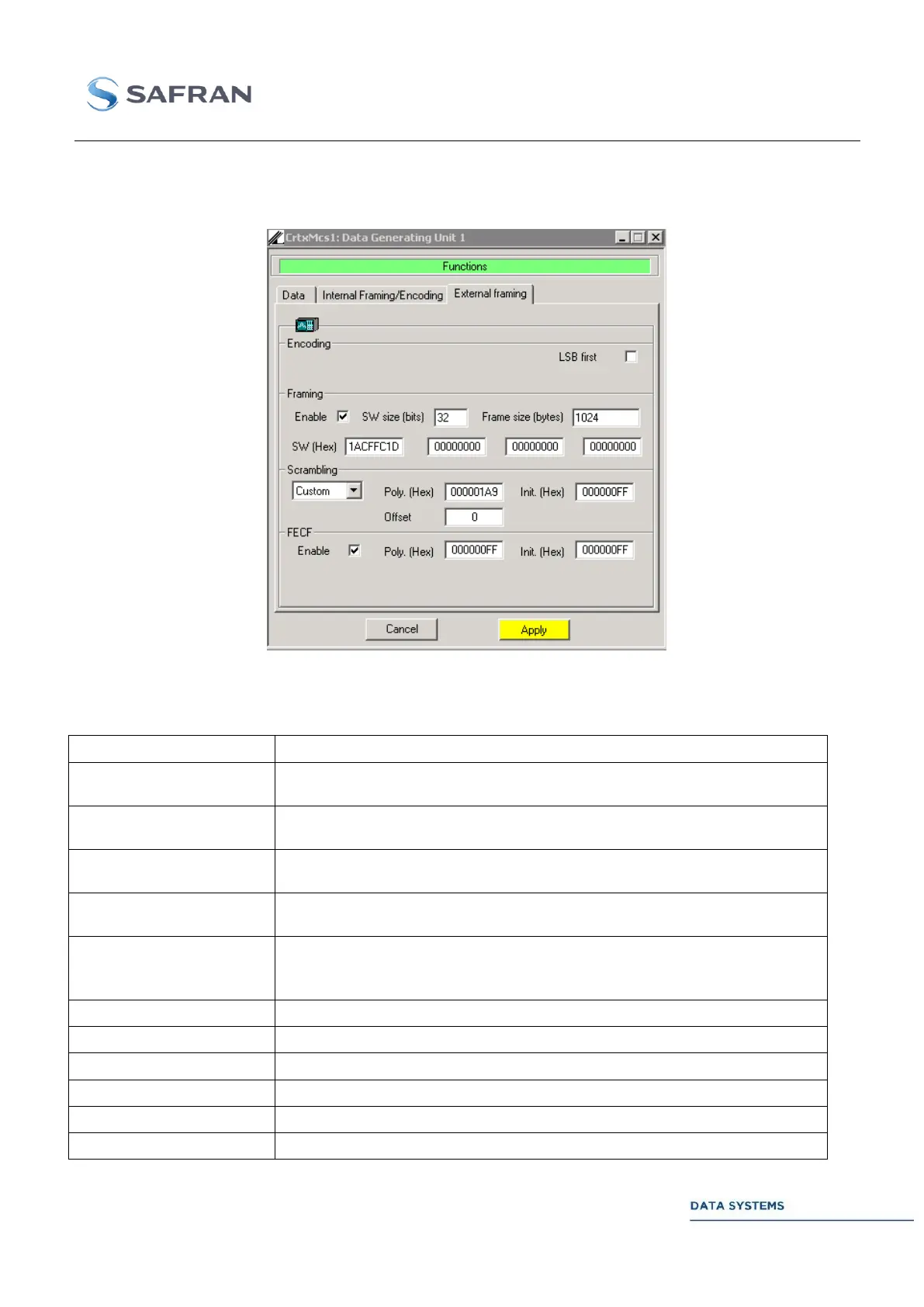

Figure 149: External Framing Window
Control 4.5.8.1.3.2
LSB FIRST
Enable or Disable the LSB-First byte formatting in the simulated data
FRAMING ENABLE
Enable or Disable the synchronization word inside the data. Essentially used with
simulated Pseudo Random Data
SW SIZE
Only if Framing enabled:
Selection of the size of the synchronization word
FRAME SIZE
Only if Framing enabled:
Selection of the size of the Frame
SW
Only if Framing enabled:
Value of the Synchronization Word (4 fields of 8 HEX characters)
SCRAMBLING SELECTION
 Off: No scrambling
 CCSDS: CCSDS Scrambling
 Custom: Customized Scrambling
SCRAMBLING POLY
Only if Custom Scrambling
SCRAMBLING INIT
Only if Custom Scrambling
SCRAMBLING OFFSET
Only if Custom Scrambling
FECF ENABLE
Enable of Disable FECF insertion
FECF POLY
Only if FECF enabled
FECF INIT
Only if FECF enabled
