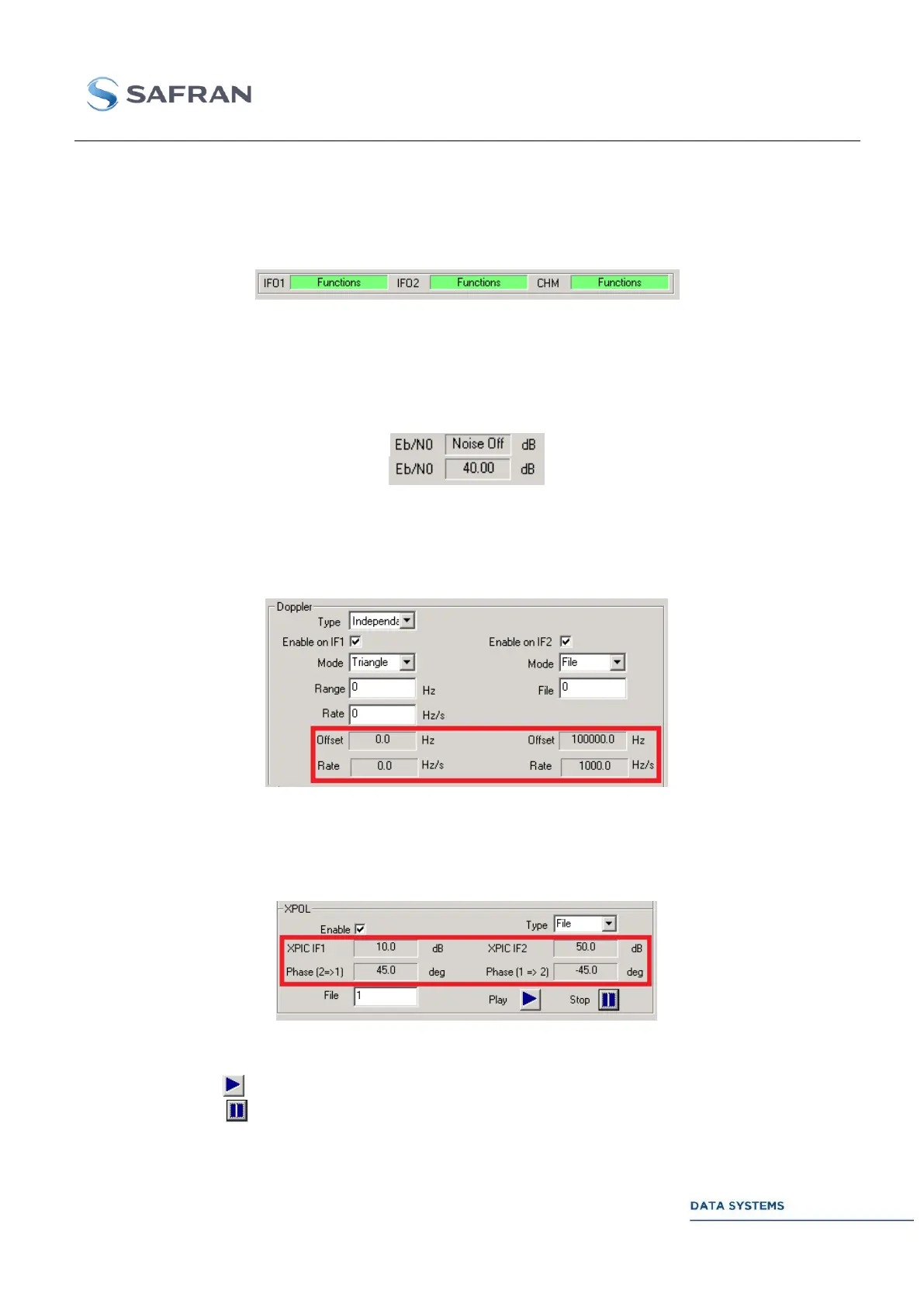

Status and Warnings 4.5.8.3.3
The upper banner indicates the Warning status: OK (green display) or ERROR (red display) for IF 1, IF
2 and CHM.
When pointing at the banner, more information about the Warning is displayed.
Figure 170: IF Warnings
In the “IF” Window, a status is placed under each contribution of each MDU for each IF. It indicates
either “Noise Off” when Noise Generator is disabled for this IF, either an estimation of the E
b
/N
0
based
on the IF Level, the Noise Level and the Bit Rate.
Figure 171: Eb/N0 status
In the “Doppler/XPOL” Window, when Doppler is active, several status indicate the actual rate and
offset in real time.
Figure 172: Doppler status
In “Doppler/XPOL” Window, when XPOL is active in File Mode, several status indicate actual XPIC and
Phase in real time.
Figure 173: XPOL status
The “PLAY” button starts playing the file.
The “STOP” button stops playing the file.
