 The frequency and level offsets between markers F1 and F2 are displayed in a separate
window:
“Vector” Window 4.5.4.7
 BPSK Modulation:

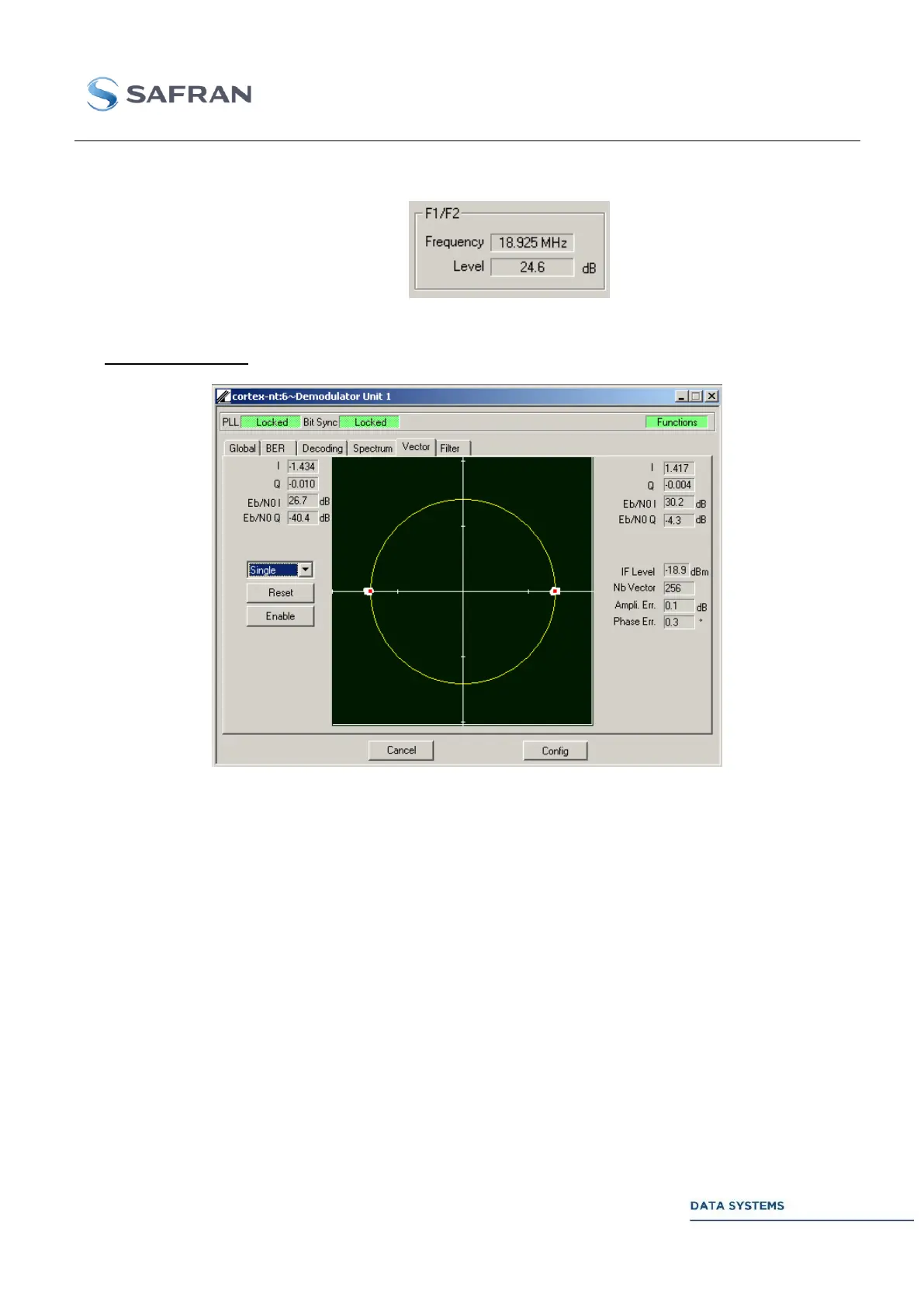

Figure 124: Demodulator: BPSK Vector Window
