 Format Output:
The LED turns to red if a serious hardware or software (license) problem is detected on the FO.
“ModCnf” Window 4.5.3.8

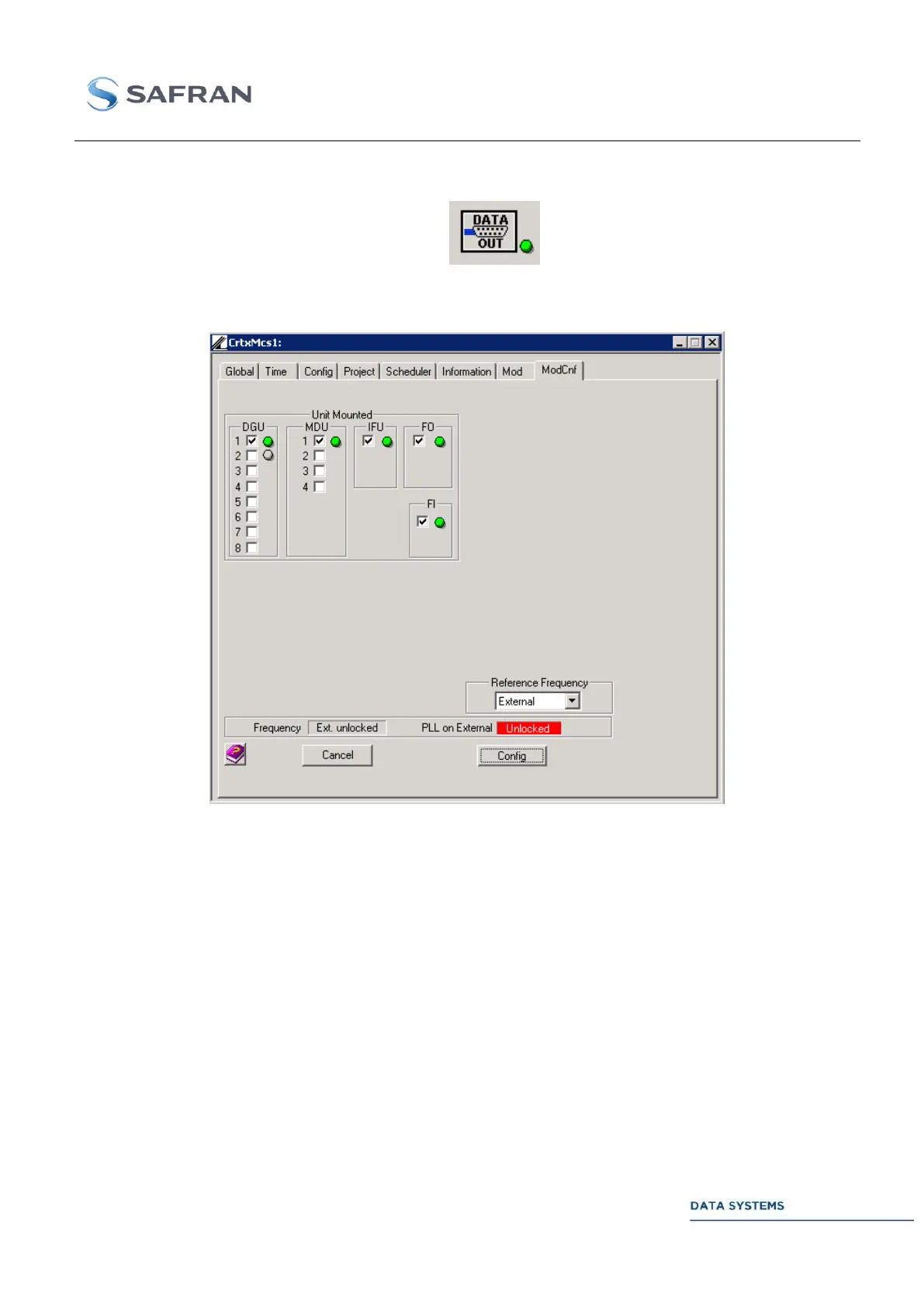

Figure 98: "ModCnf" Window
For each type of unit, a grey LED indicates that the unit is available but not used. A green LED
indicates that the Unit is mounted.
The type and number of available units depends on the configuration selected on the “Config” Window.
Reference Frequency can be chosen external or internal.
A status indicates the source of Reference Frequency.
When the Reference Frequency is external, a status indicates if it is locked (Green) or unlocked (Red).
